500kg Electric Scissor Lift Table Lift Mate ESL50D

  • Sale
  • Regular price £2,394.00

(£1,995.00 + VAT)

SKU: ESL50D




The Lift Mate mobile scissor table range has been designed, developed and built to give long service with minimum maintenance required.

The 300kg electric double scissor table is highly manoeuvrable & easy to use.

  • Battery electric powered operation
  • 12V maintenance free battery
  • 700W dc power pack
  • Time to maximum height: 14 - 17 seconds
  • Overall length including pedal: 1230mm
  • Can be used safely at any height
  • Fitted with two total stop brakes as standard to prevent the table from moving when loading and unloading
  • Fitted with an overload valve
  • Hard wearing and non-marking polyurethane tyres prevent damage to floors
  • Swivel wheels fitted with thread guards
  • Epoxy powder coated finish for durability
  • Issued with a test certificate in conformance with EU standard EN 1570

Part Number ESL50D
Manufacturer Lift Mate
Lifting Capacity
500kg
Platform Dimensions

Width: 520mm

Length: 1010mm

Closed Height
435mm
Raised Height
1618mm
Handle Height
1180mm
Wheel Diameter
150mm

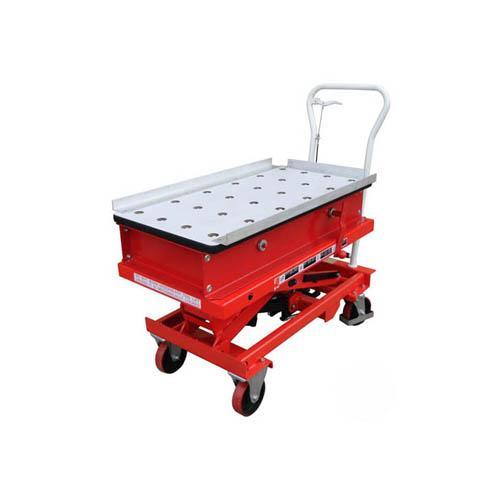

Ball Transfer Top

Attachment

Capacity: 450kg

Platform Width: 560mm

Platform Length: 1010mm

Base Width: 500mm

Height: 180mm

Height (with guards): 220mm

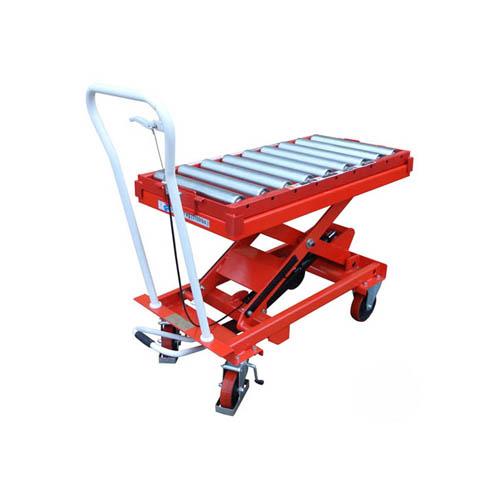

Straight Roller Track

Attachment

Capacity: 450kg

Width: 500mm

Length: 1010mm

Overall Width: 535mm

Overall Length: 1025mm

Height: 50mm

Overall Height: 100mm

Number of Rollers: 9

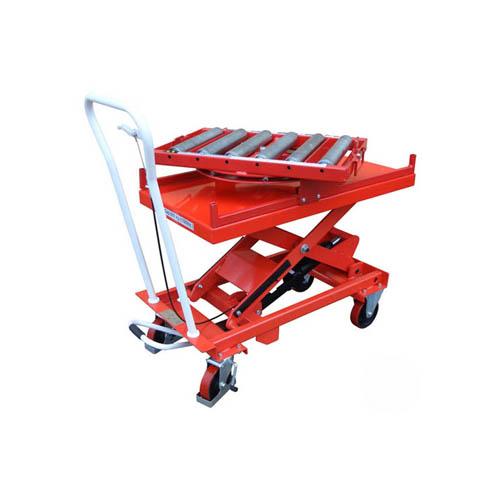

Turntable Roller Track

Attachment

Capacity: 200kg

Top Width: 505mm

Top Length: 710mm

Rotating Base Width: 535mm

Height: 100mm

Number of Rollers: 6
