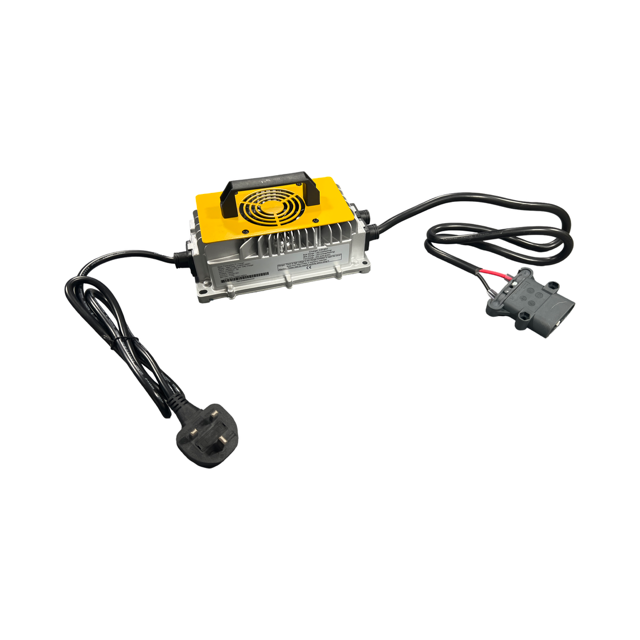

BT Toyota 245535 Battery Charger – 24V 30A
The BT Toyota 245535 Lead Acid Battery Charger 24V 30A is a high-frequency charger designed for 24V lead-acid flooded batteries, providing efficient and controlled charging for BT Toyota electric pallet trucks.
This BT Toyota 245535 Lead Acid Battery Charger 24V 30A operates on a wide AC input range and delivers a stable 24V / 30A DC output, making it suitable for intensive warehouse use where reliability and battery protection are critical.
Technical Specifications
-
Model: PBST2430 (XMQA1250W)
-
BT Toyota Part Number: 245535
-
Input Voltage: AC 180–260V, 50–60Hz
-
Input Current: 6A
-
Output Voltage: DC 24V
-
Output Current: 30A
-
Battery Type: Lead-acid flooded battery
-
Charger Type: High-frequency charger
Charging Status Indicators - BT Toyota 245535 Lead Acid Battery Charger 24V 30A
Integrated LED indicators provide clear charging status:
-
Bulk Charge: Red LED (flashing)
-
80% Charge: Orange LED (flashing)
-
Full Charge: Green LED (solid)
Compatible BT Toyota Models
-
LWE160
-
LWE180
-
LWE200
Safety & Compliance
-
CE marked
-
High-voltage unit – cover must not be opened
-
Designed for indoor industrial use
-
Follow operating instructions before use
This BT Toyota 245535 Lead Acid Battery Charger 24V 30A is a direct replacement for the original BT Toyota unit and is suitable for maintaining optimal battery performance and service life in daily material-handling operations.
