Description

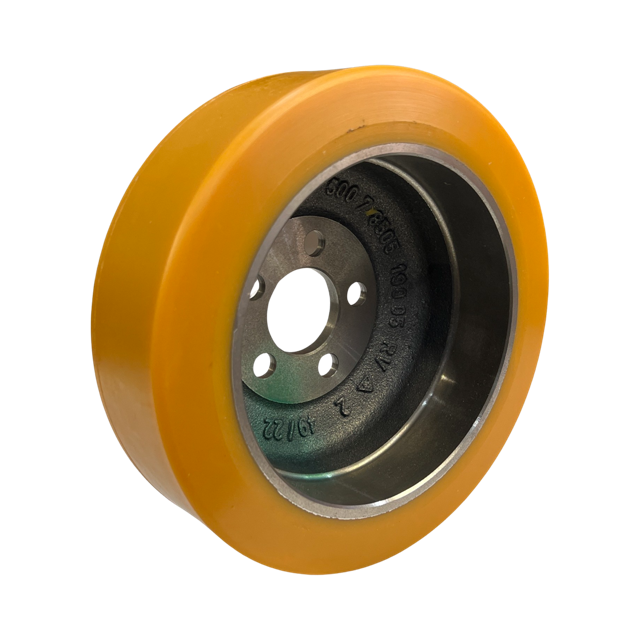

BT Toyota LPE200 LEVIO Drive Wheel 230mm x 70mm 7535735
BT Toyota LPE200 LEVIO Drive Wheel 230mm x 70mm 7535735 has a high grade non-marking polyurethane tread directly bonded to the cast iron centre.
BT Toyota LPE200 LEVIO Drive Wheel 230mm x 70mm 7535735 has countersunk stud holes, so the bolts sit partially below the hub surface.
| Part Number | 7535735 |
|---|---|
| Manufacturer | BT Toyota |
| Model | LPE200 LEVIO |
| Year of Manufacturer |
2017 ► Onwards |
| Wheel Type | Drive Wheel |
| Tread Material | Polyurethane |
| Wheel Diameter | 230mm |
| Tread Width | 70mm |
| Hub Width | 76mm |
| Mounting Width | 76mm |
| Bore Hole Diameter | 45mm |
| Pitch Circle Diameter | 70mm |
| Stud Hole Diameter | 13mm |
| Number of Studs |
5 |
| Bolt Hole Type | Countersunk |
| Tread Hardness | 93 Shore A |
| Hub Material | Cast Iron |
| Load Capacity | 1470kg |
