4 Pin Battery Base Connector – EP / Linde / Still / Pramac

4 Pin Battery Base Connector – EP / Linde / Still / Pramac

Replacement 4 Pin Battery Base Connector – EP / Linde / Still / Pramac suitable for a wide range of electric pallet trucks manufactured or supplied by EP Equipment, Linde, Still, Pramac, Big Joe, Clark, Climax and Liftek.

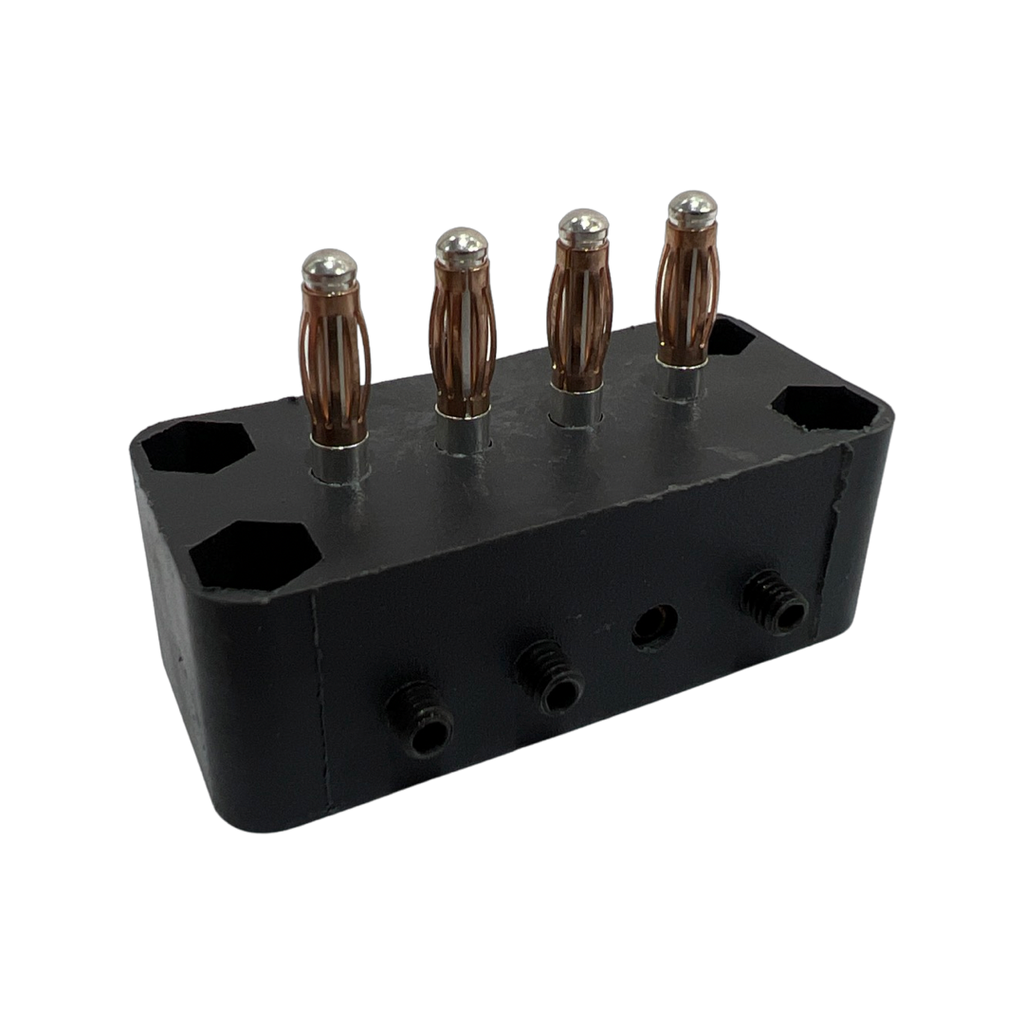

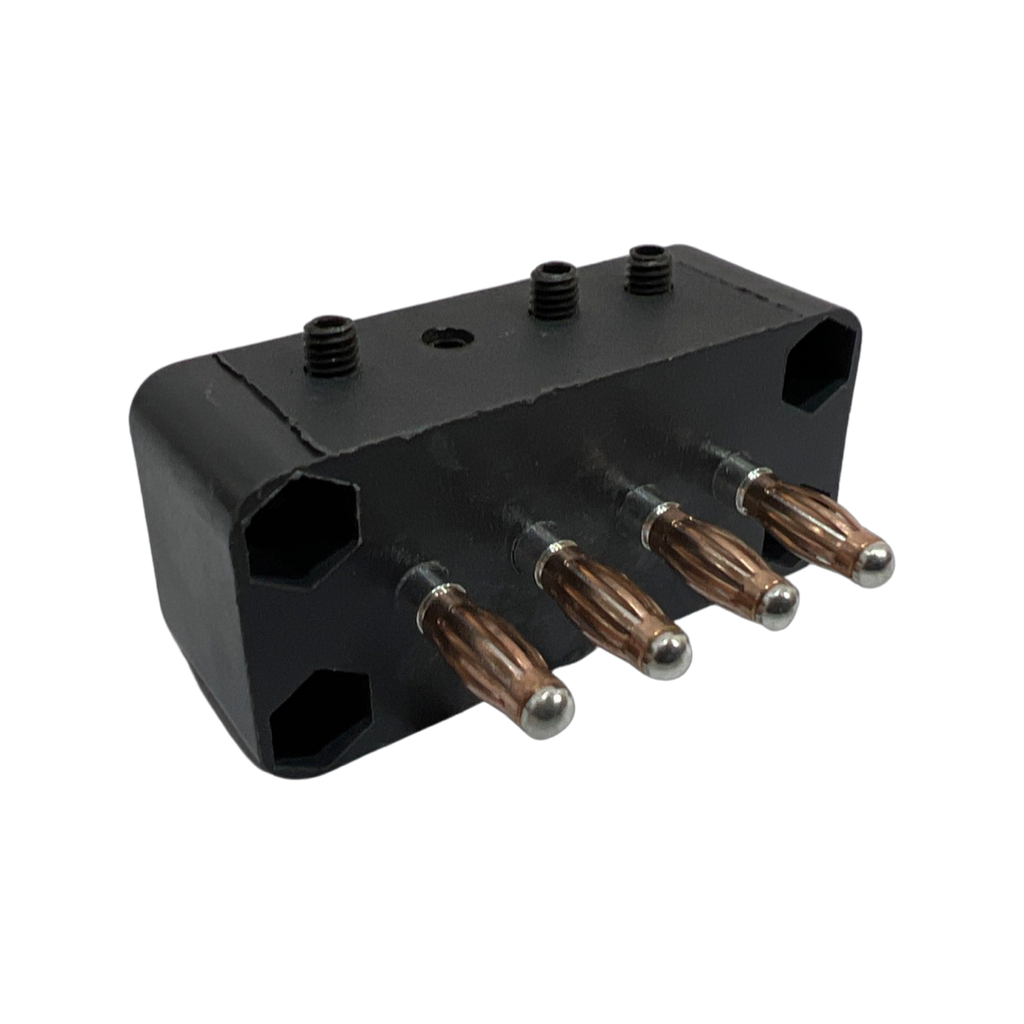

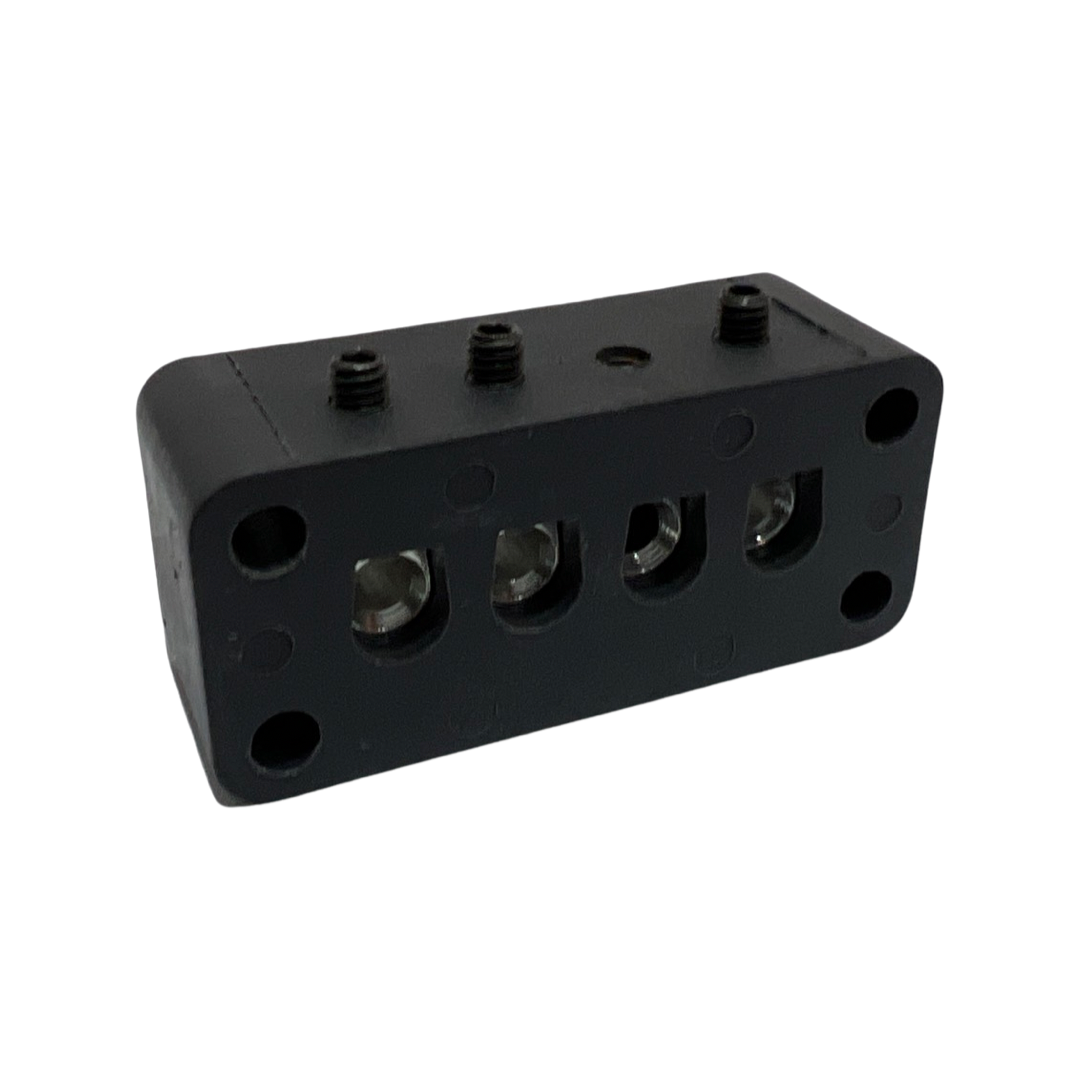

This 4 Pin Battery Base Connector – EP / Linde / Still / Pramac forms part of the removable battery connection system, providing the electrical connection between the battery and the pallet truck. It is ideal for replacing an original connector that has become damaged, worn or is no longer providing a reliable electrical connection.

Part Numbers / Cross References

• EP Equipment: 1113-511010-00
• Linde: 61593802000
• Still: 11313811501
• Pramac: PCE1113-511010-00
• Additional Reference: 111351101000

Suitable Makes & Models

EP Equipment

• EPL152
• EPL153
• EPL1531
• EPT12-EZ
• EPT16L
• HPL151
• HPL152
• IPL152
• QDD10L

Linde

• MT12

Still

• ECH12

Pramac

• EX15L

Big Joe

• PL1531
• EPL1531
• EPT12-EZ
• HPL152

Clark

• WPio12 / Pio12

Climax

• P12
• P12-ION
• P153C-ION

Liftek

• Powerglide 1200
• Powerglide 1200+ PLUS
• DriverTruk 20
• DriverTruk 30

Product Details

Connector Type: 4 Pin
Application: Battery base electrical connector
EP Part Number: 1113-511010-00
Linde Part Number: 61593802000
Still Part Number: 11313811501
Pramac Part Number: PCE1113-511010-00

Some pallet truck models may have been manufactured with different battery connectors depending on the production date and serial number. Please compare the connector and part number with your existing component before ordering.

If you are unsure which connector your truck requires, please contact us with the make, model and serial number and we can help identify the correct part.

Important: This is the 4 Pin Battery Base Connector – EP / Linde / Still / Pramac. It should not be confused with the 2 pin version, EP part number 1113-511011-00.
