Description

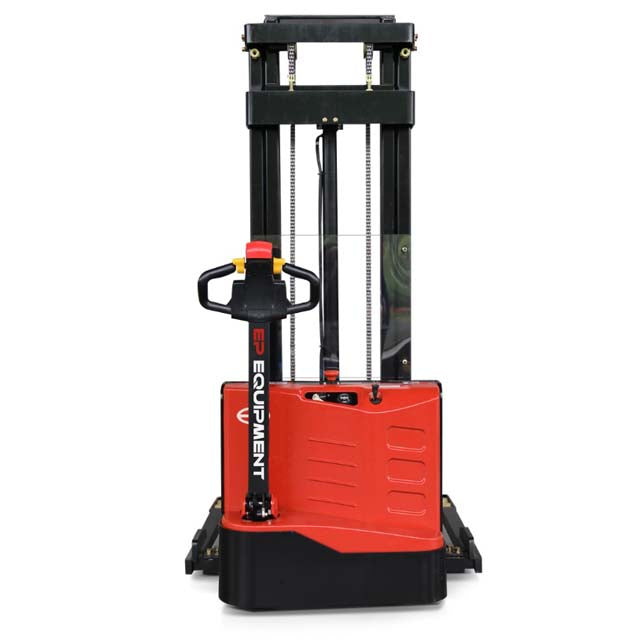

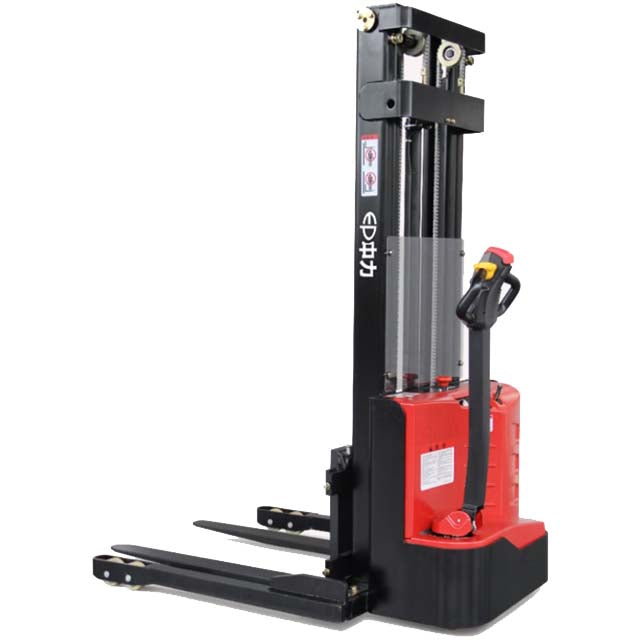

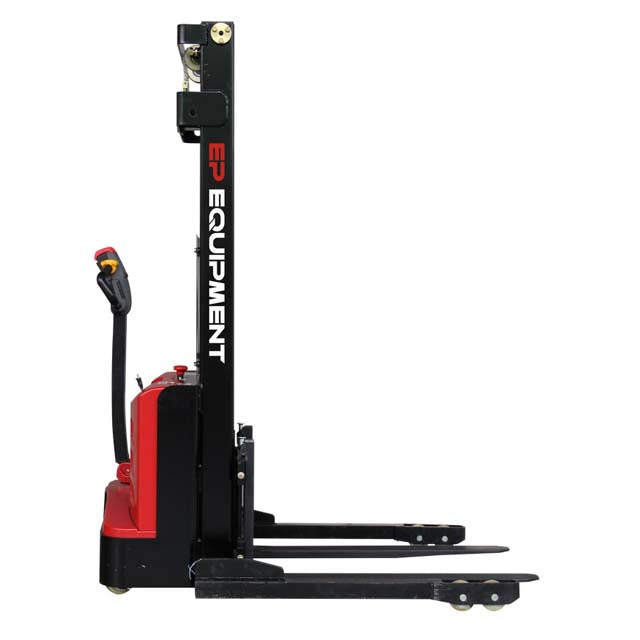

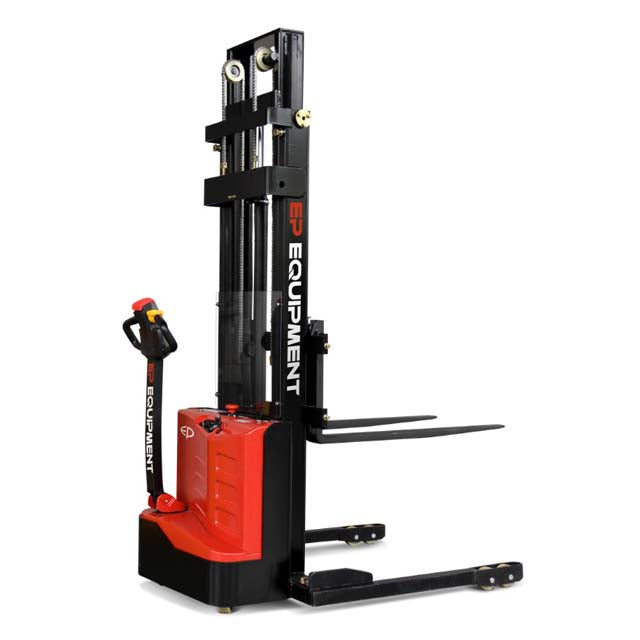

EP Equipment ES12-25DM | 1200kg Electric Straddle Stacker
The EP Equipment ES12-25DM | 1200kg Electric Straddle Stacker is a compact, pedestrian-operated electric straddle stacker designed for efficient pallet handling in warehouses, retail stockrooms, and light industrial environments. With a 1200kg rated capacity and a 2-stage Clear View mast lifting to 2970mm, it offers excellent visibility, stability, and performance where space is limited.
Equipped with adjustable straddle legs, the EP Equipment ES12-25DM | 1200kg Electric Straddle Stacker is ideal for handling open-bottom pallets, closed-bottom pallets, stillages, and wider loads, while its electric lift and drive system reduces operator fatigue and increases productivity.
Key Features & Benefits - EP Equipment ES12-25DM | 1200kg Electric Straddle Stacker
-
1200kg Load Capacity – Reliable handling of standard and heavier palletised loads
-
2980mm Lift Height – Suitable for racking, shelving, and vertical storage
-
Two-Stage Clear View Mast – Improved forward visibility and safer stacking
-
Adjustable Straddle Legs – Accommodates a wide range of pallet and load widths
-
Electric Drive & Lift – Smooth operation with minimal physical effort
-
Compact Pedestrian Design – Ideal for narrow aisles and confined spaces
-
Electromagnetic Braking System – Enhanced control and safety
-
Low Noise Operation (74 dB) – Suitable for indoor environments
-
UK Charger Plug – Ready for UK sites with standard power supply
Standard Specifications - EP Equipment ES12-25DM | 1200kg Electric Straddle Stacker
-
Manufacturer: EP Equipment
-
Model: ES12-25DM
-
Rated Capacity: 1200kg
-
Lift Height: 2970mm
-
Mast Type: Two Stage Clear View (Duplex)
-
Collapsed Mast Height: 2083mm
-
Fork Length: 1070mm
-
Fork Dimensions: 35 × 100 × 1070 mm
-
Straddle Legs: Adjustable (inside width approx. 1060–1360mm)
-
Drive Type: Electric (DC motor)
-
Travel Speed: Up to 4.5 km/h (unladen)
-
Lift Motor: 2.2 kW
-
Service Brake: Electromagnetic
-
Battery: 24V (2 × 12V)
-
Charger: UK plug supplied
-
Noise Level: 74 dB(A)
Ideal Applications - EP Equipment ES12-25DM | 1200kg Electric Straddle Stacker
-
Warehousing and distribution
-
Retail back-of-house operations
-
Light manufacturing
-
Mezzanine and racking systems
-
Handling non-standard or open pallets
