Description

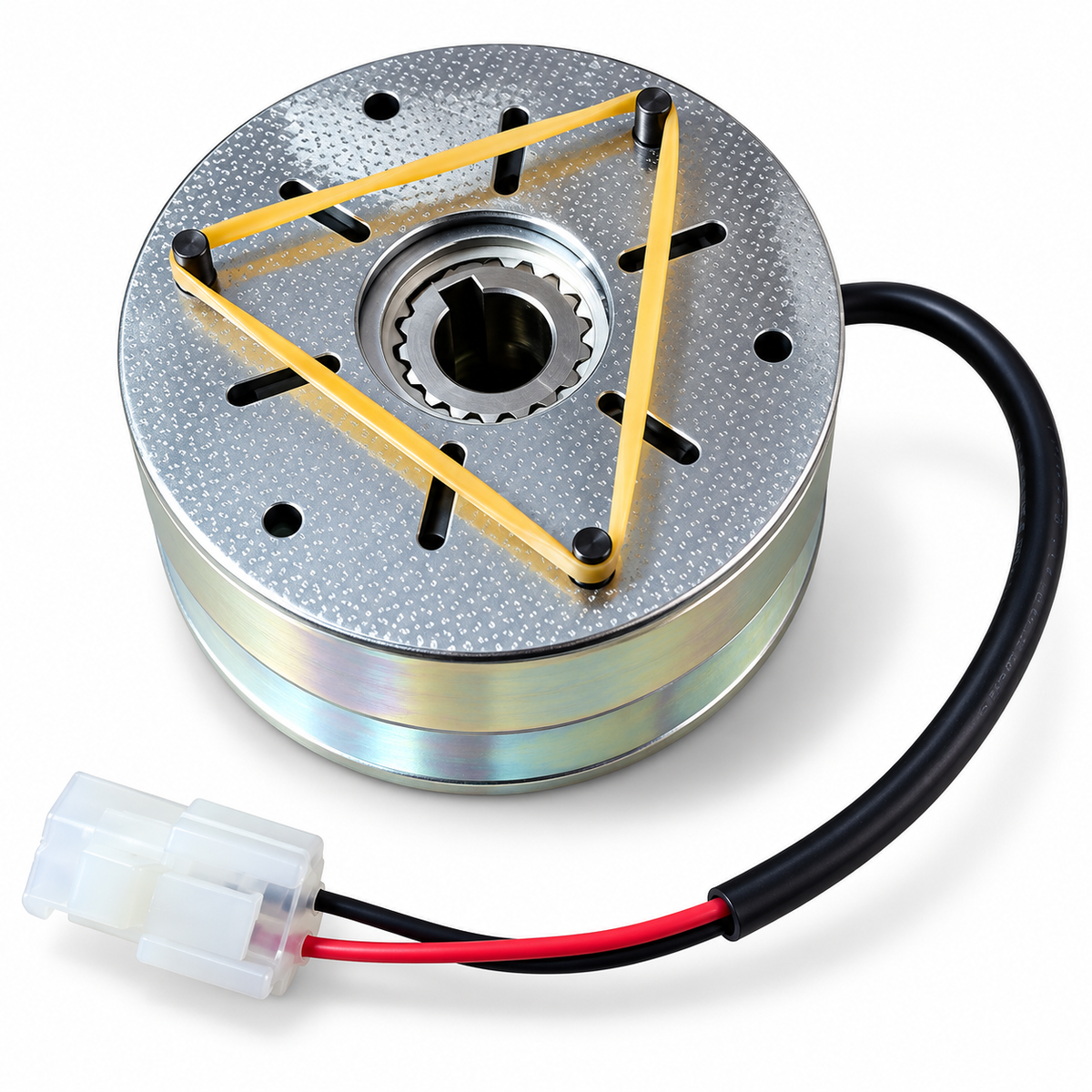

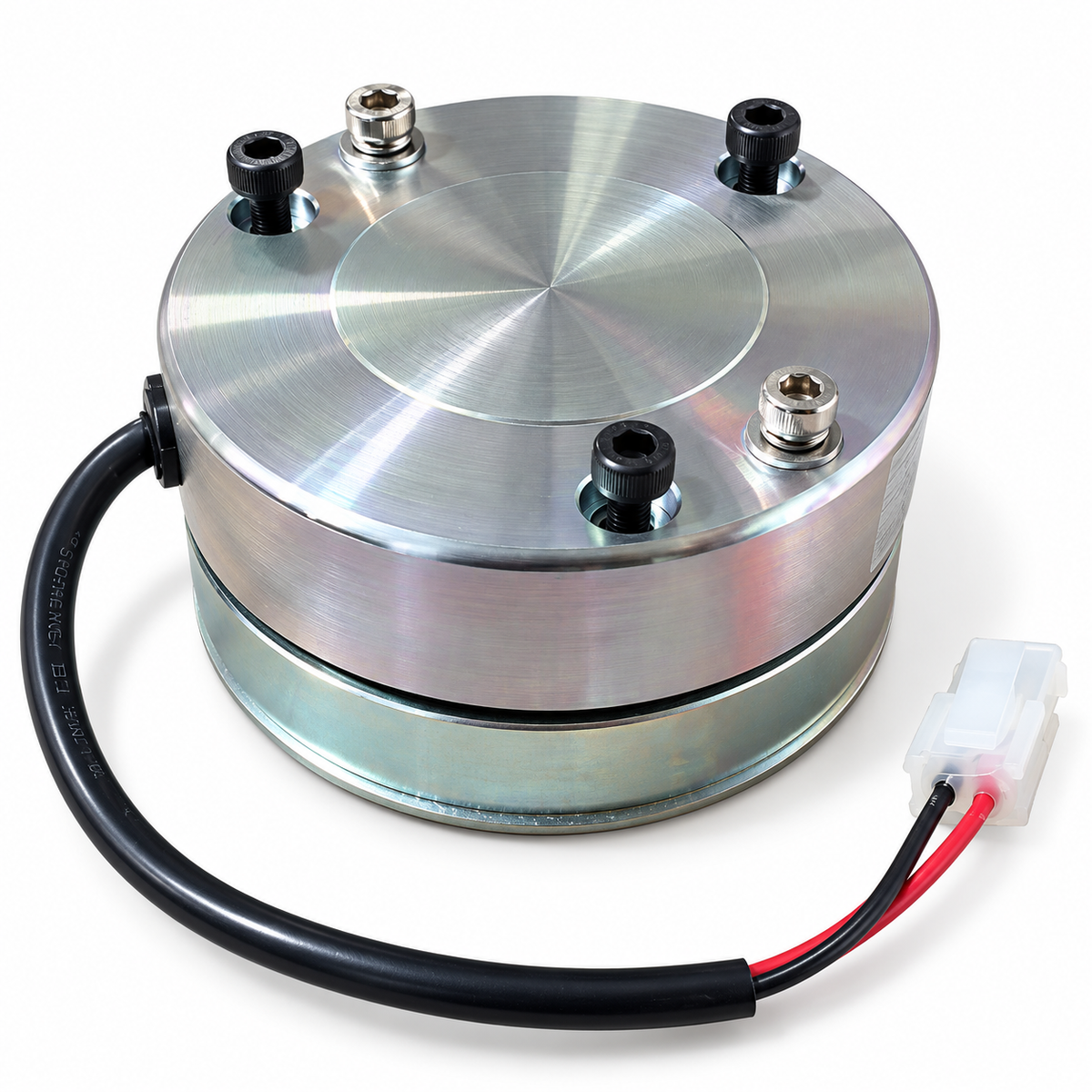

The EP Equipment, Still and Linde Brake Assembly 1115-520012-20 is a replacement electromagnetic drive brake suitable for selected electric pallet trucks, stackers and warehouse handling equipment.
This brake assembly replaces EP Equipment part number 1115-520012-10 and is also interchangeable with selected Still and Linde brake references, including Still 11313300202 and Linde 11313300203 / 61593300200.
Suitable for a wide range of EP Equipment models, including the F1, F2, F3, F4, F5, EPL, EPT, EST and ES series, together with selected Still ECH12 and Linde MT12 electric pallet trucks.
Compatible Models
Compatibility is subject to the machine's serial number, market specification and drive-system configuration.
| Manufacturer / Model | Serial Number / Application |
|---|---|
| EP Equipment | |
| EPE151 | 0201 driving system |
| EPL151 | Serial numbers before 4311207993 |
| EPL153 | 0201 driving system |
| EPL1531 | 0201 driving system |
| EPL154 (Z) | 0201 driving system |
| EPT12-EZ | 0202 driving system; big drive wheel |
| EPT12-EZ Pro | 0202 driving system; big drive wheel |
| EPT12-EZX | 0202 driving system; big drive wheel |
| EPT15-EZ CE | 0201 driving system |
| EPT18-EHJ | Before 426150000; 426150001–427202925; 427202926–4311208127; or from 4311208128, according to drive configuration |
| EPT20-15EHJ | 426150001–427202925 or from 4311206141; confirm other serial ranges |
| EPT20-15ET | 0201 driving system; optional removable drive wheel configuration also listed |
| EPT20-15ET2 | 0201: 426150001–427202925. Overseas 020102: 427202926–4311205878. Overseas 020103: from 4311205879. China 020102 also listed |
| EPT20-15ET2L | 0201 driving system |
| EPT20-15ET9 | CE version; 0201 driving system |
| ESA121 | EU version; 0201 driving system |
| ESi161 | 0201 driving system |
| ESL122 | 0201 driving system |
| ESR122 | 0201 driving system |
| ESR151 / ESR152 | 0201 driving system |
| ES10-10ES | EU version; serial-dependent. Lithium version from 426150001 |
| ES10-10ESJ / ES2 | 0201 driving system |
| ES10-10MM | EU version; serial-dependent. Lithium version from 426150001 |
| ES10-22DM | EU version; before 426150000 or from 426150001, according to configuration |
| ES10-22MM | EU version; before 426150000 or from 426150001, according to configuration |
| ES12-12ES | EU version; 0201 driving system |
| ES12-12MM | EU version; 0201 driving system |
| ES12-12MMi | Before 426150000 or from 426150001; verify drive configuration |
| ES12-25DM | EU version; 0201 driving system |
| ES12-25MM | EU version; 0201 driving system |
| ES13-13ES | 0201 driving system |
| ES13-15ES | 0201 driving system |
| ES13-28DM | 0201 driving system |
| EST101 | 0201 driving system |
| EST121 | 0201 driving system |
| EST122 | 0201 driving system |
| EST124 / JS141 | 0201 driving system |
| EST152Z / ESD122 | 0201 driving system |
| EXP15 | 0202 driving assembly |
| F1 | 0201 driving system |
| F2 | 0201 driving system |
| F3 | 0201 driving system |
| F4 | 0201 driving system |
| F4 (RAVAS) | CE version; 0201 driving system |
| F5 / F5 Pro | 0201 driving system; F5 Pro configuration listed |
| HPL151 | 0201 driving system |
| IPL153 | 0201 driving system |
| JX0 | Old CE before 2321100470; new CE from 2321100471; non-CE also listed |
| XP15 | 0202 driving system |
| XP1-G | 0202 driving system |
| Linde | |
| MT12 (1131 Series) | Brake references 11313300203 / 61593300200. Confirm machine serial number and brake specification. |
| Still | |
| ECH12 | Brake reference 11313300202. Confirm machine serial number and brake specification. |
Part Number References
| Manufacturer | Part Number |
|---|---|
| EP Equipment | 1115-520012-20 (Current) |
| EP Equipment | 1115-520012-10 (Previous) |
| EP Equipment | 1115-520012-00 / 1115-520012-0A (Earlier references) |
| Linde | 11313300203 |
| Linde | 61593300200 |
| Still | 11313300202 |
Technical Specifications
| Component | Electromagnetic Brake Assembly |
| Primary Part Number | 1115-520012-20 |
| Compatible Manufacturers | EP Equipment, Linde, Still |
| Application | Electric pallet trucks, stackers and warehouse equipment |
| Function | Drive motor braking and holding |
| Brake Voltage | Verify against original brake |
| Quantity | 1 x Brake Assembly |
Important Compatibility Information: Some machines use different brake specifications depending on serial number, manufacturing date, market and drive-system configuration. Please confirm the original brake part number and machine serial number before ordering.
Safety: Brakes are safety-critical components. Installation and functional testing must be carried out by a suitably qualified engineer before the machine is returned to service.
