Description

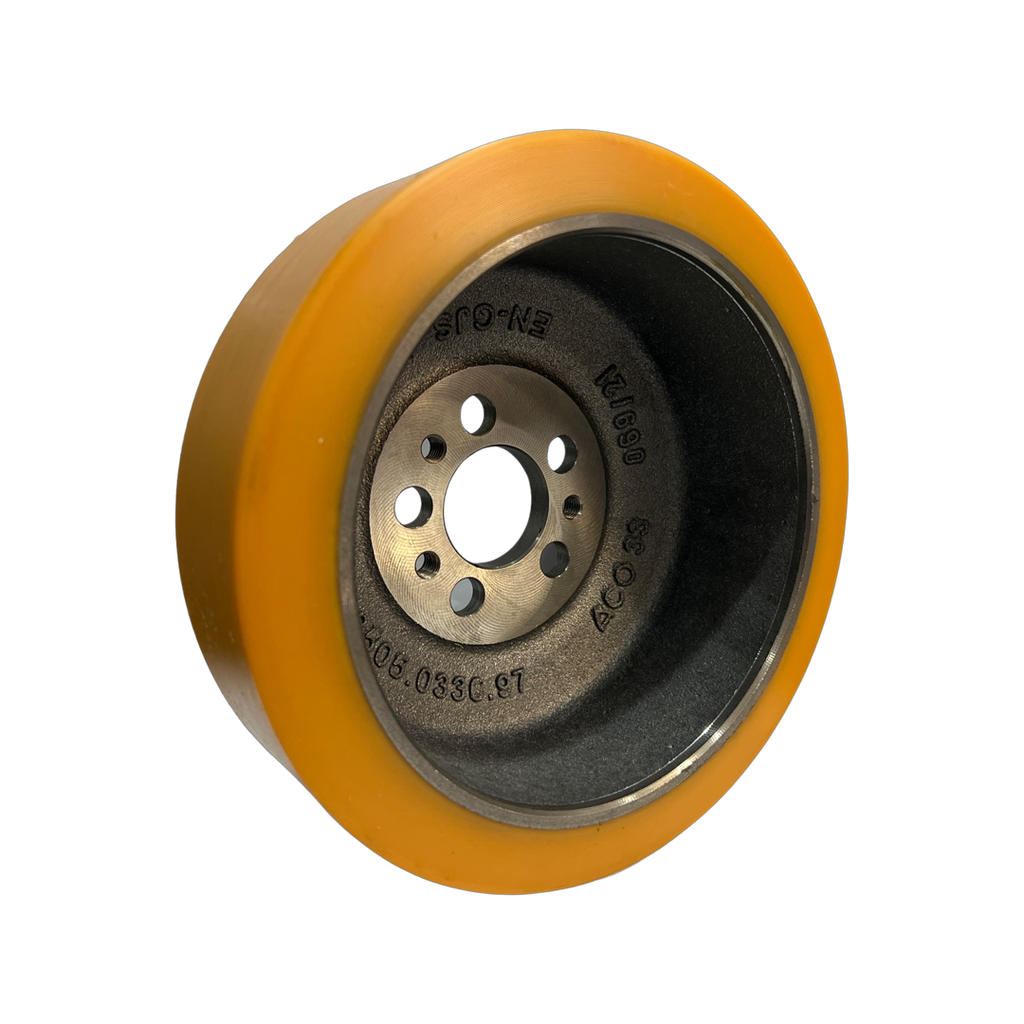

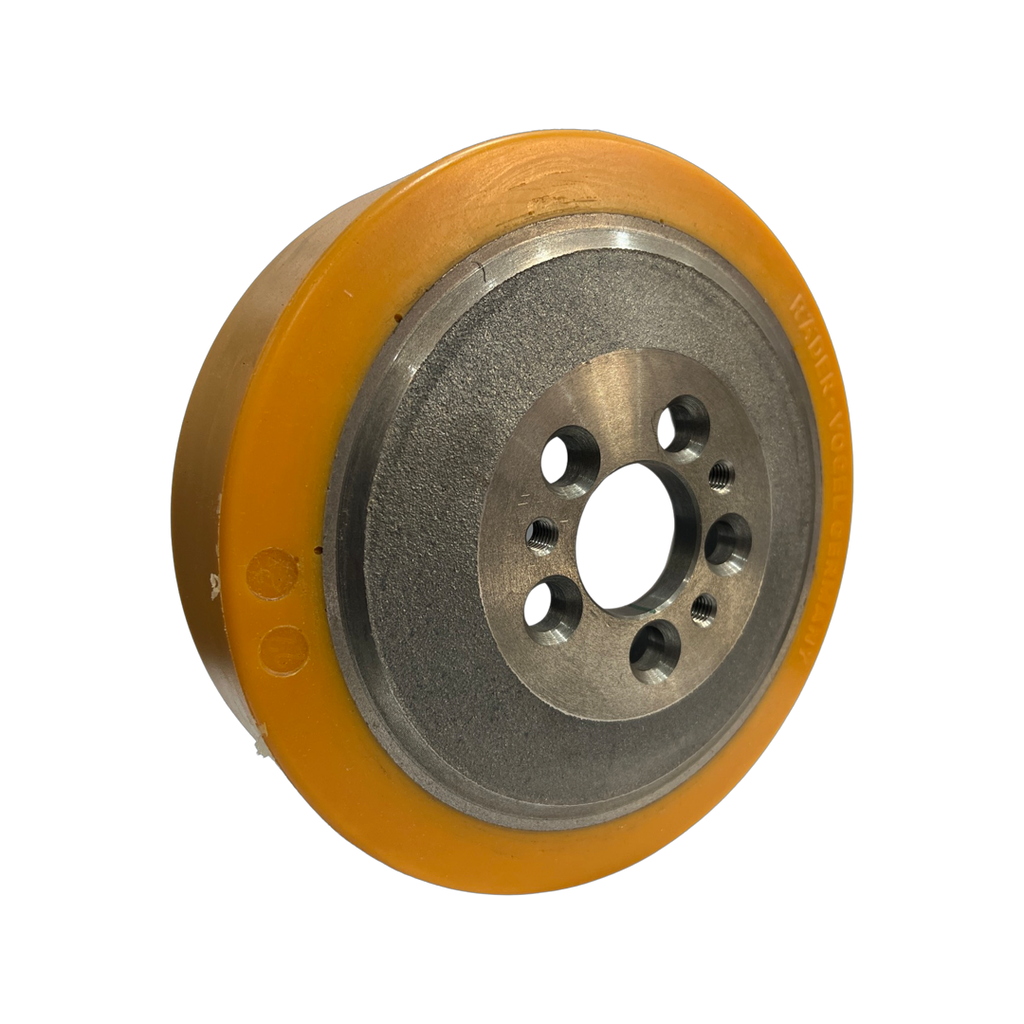

Jungheinrich EJE 116 Drive Wheel 230mm x 70mm 50023644
Jungheinrich EJE 116 Drive Wheel 230mm x 70mm 50023644 has a high-quality polyurethane tread directly bonded to a cast iron centre.
Jungheinrich EJE 116 Drive Wheel 230mm x 70mm 50023644 is non-marking and offers good dynamic load capacity, mechanical wear resistance and a good compression set.
| Part Number | 50023644 |
|---|---|
| Manufacturer | Jungheinrich |
| Model | EJE 116 |
| Year of Manufacture |
2007 to 2018 |
| Wheel Type |
Drive Wheel |
| Tread Material |
Polyurethane |
| Wheel Diameter |
230mm |
| Tread Width |
70mm |
| Hub Width |
82mm |
| Mounting Width |
82mm |
| Bore Hole Diameter |
45mm |
| Load Capacity |
1450kg |
| Number of Studs |
5 |
| Stud Hole Diameter |
14mm |
| Bolt Hole Type |
Countersunk |
| Hub Material |
Cast Iron |
| Tread Surface |
Smooth |
| Unit Weight | 5.5kg |
