Description

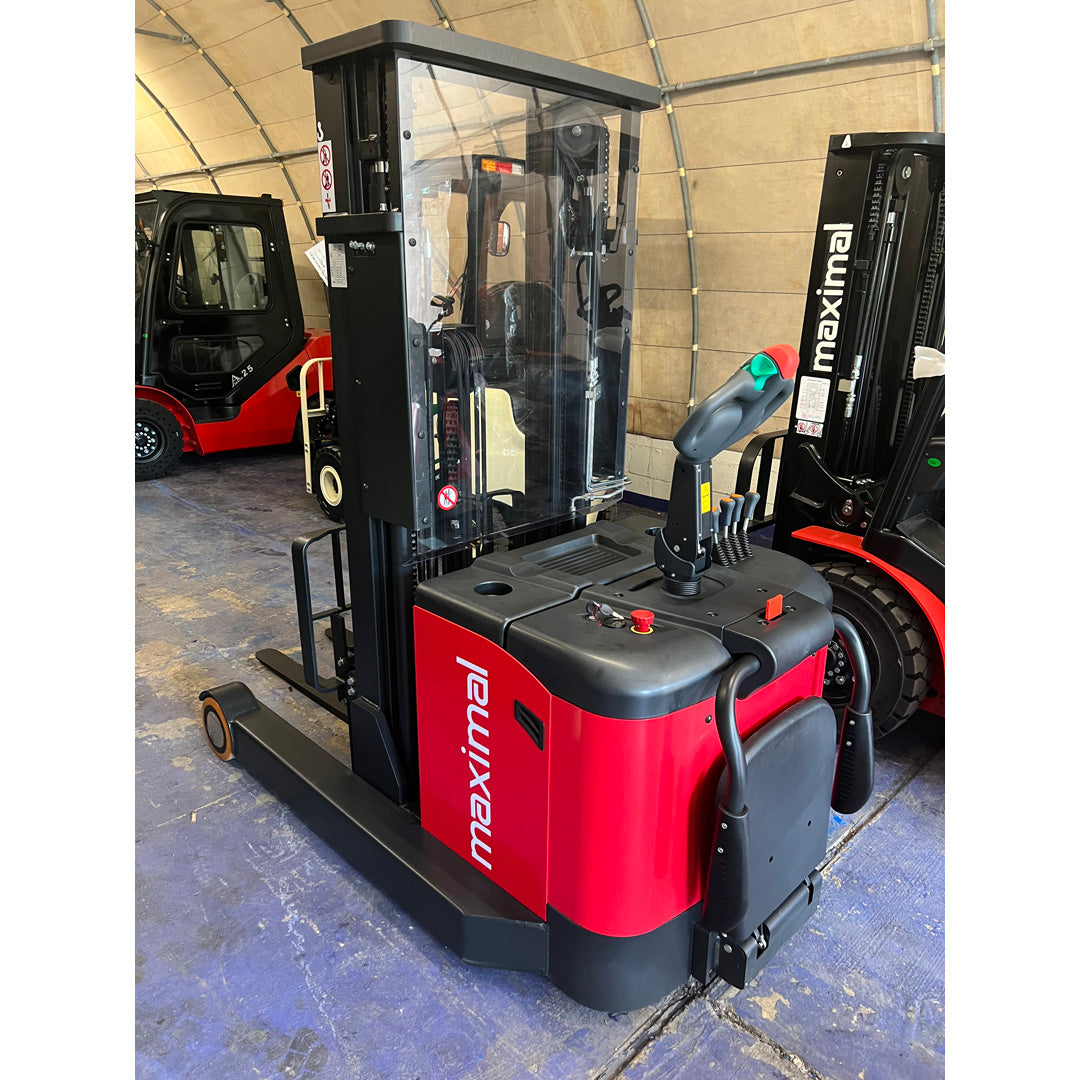

Maximal PS15RM 1500kg Electric Lithium Reach Pallet Stacker
The Maximal PS15RM 1500kg Electric Lithium Reach Pallet Stacker is the ultimate choice for heavy-duty, lithium-powered pallet stacking.
Capable of lifting loads of up to 1500kg, the Maximal PS15RM 1500kg Electric Lithium Reach Pallet Stacker is the perfect solution for warehouses, factories, and distribution centers – delivering peak performance and efficiency.
Get ready to stack like never before with the Maximal PS15RM 1500kg Electric Lithium Reach Pallet Stacker.
| Part Number | PS15RM-LITHIUM |
|---|---|
| Manufacturer | Maximal |
| Model | PS15RM |
| Operator Type |
Pedestrian |
| Lifting Capacity |
1500kg |
| Load Centre Distance |
600mm |
| Power |
Fully Electric |
| Fork Length |
1070mm |
|
Width of Each Fork |
100mm |
|
Fork Thickness |
35mm |
| Fork Tilt |
Forward 3 degrees Backwards 5 degrees |
|
Attachment |
N/A |
| Lift Height |
4500mm |
| Mast Types |
Triplex Full Free Lift |
| Collapsed Lowered Height |
2250mm |
| Free Lift Height |
1235mm |
| Drive Wheel Material | Polyurethane 210mm x 85mm |
| Stabiliser Wheel Material |
Polyurethane 125mm x 50mm |
| Load Roller Wheels |
Polyurethane 230mm x 75mm |

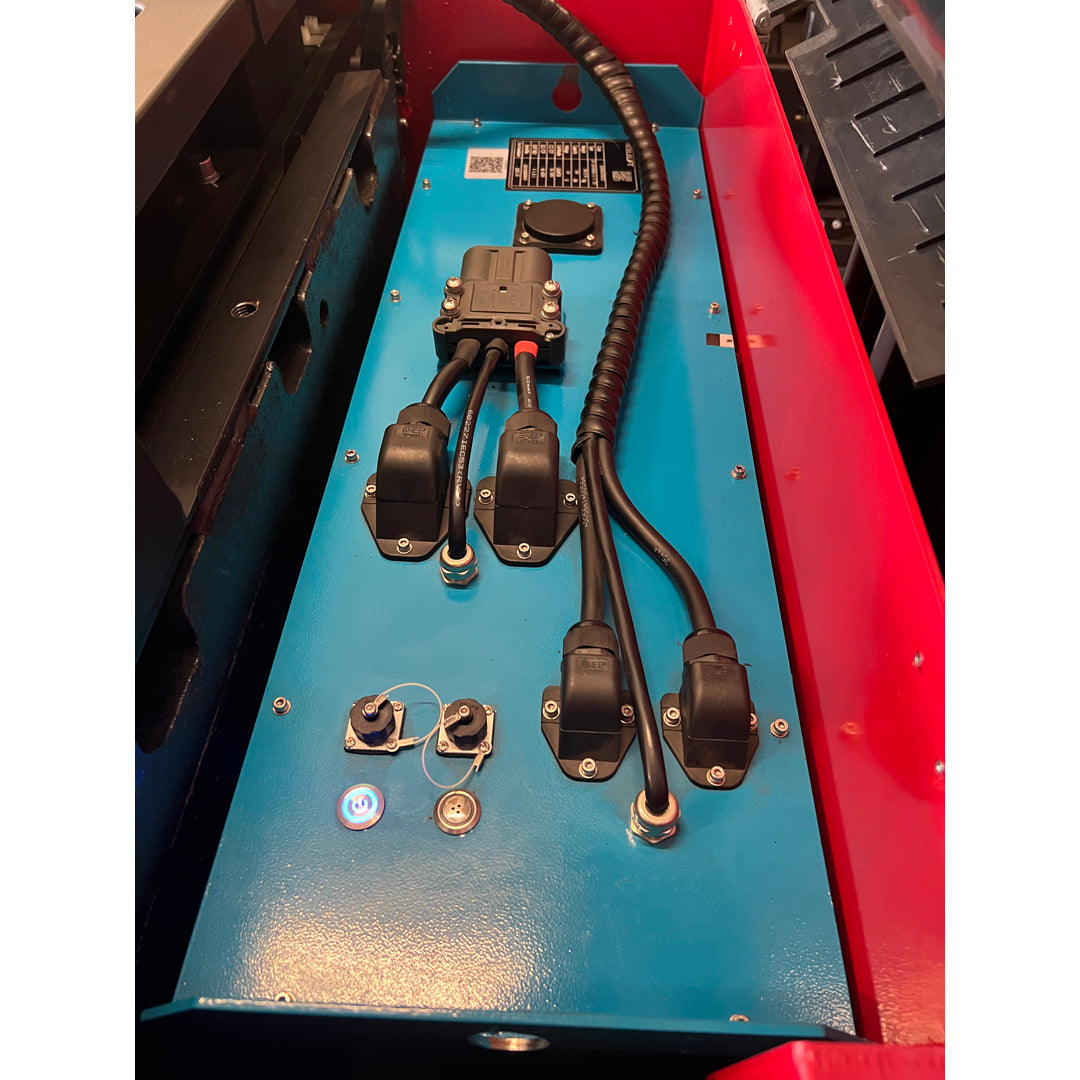

| Battery |
24V / 340Ah |
| Charger |
24V External (Single Phase) Requires a 32amp supply |
|
Aisle Width For Pallets 800mm x 1200mm Lengthways |
2654mm |
| Turning Radius |
1600mm |
| Type of Controller |
Curtis AC |
