Description
Maximal PTE20N 2000kg 540mm x 1150mm Electric Pallet Truck

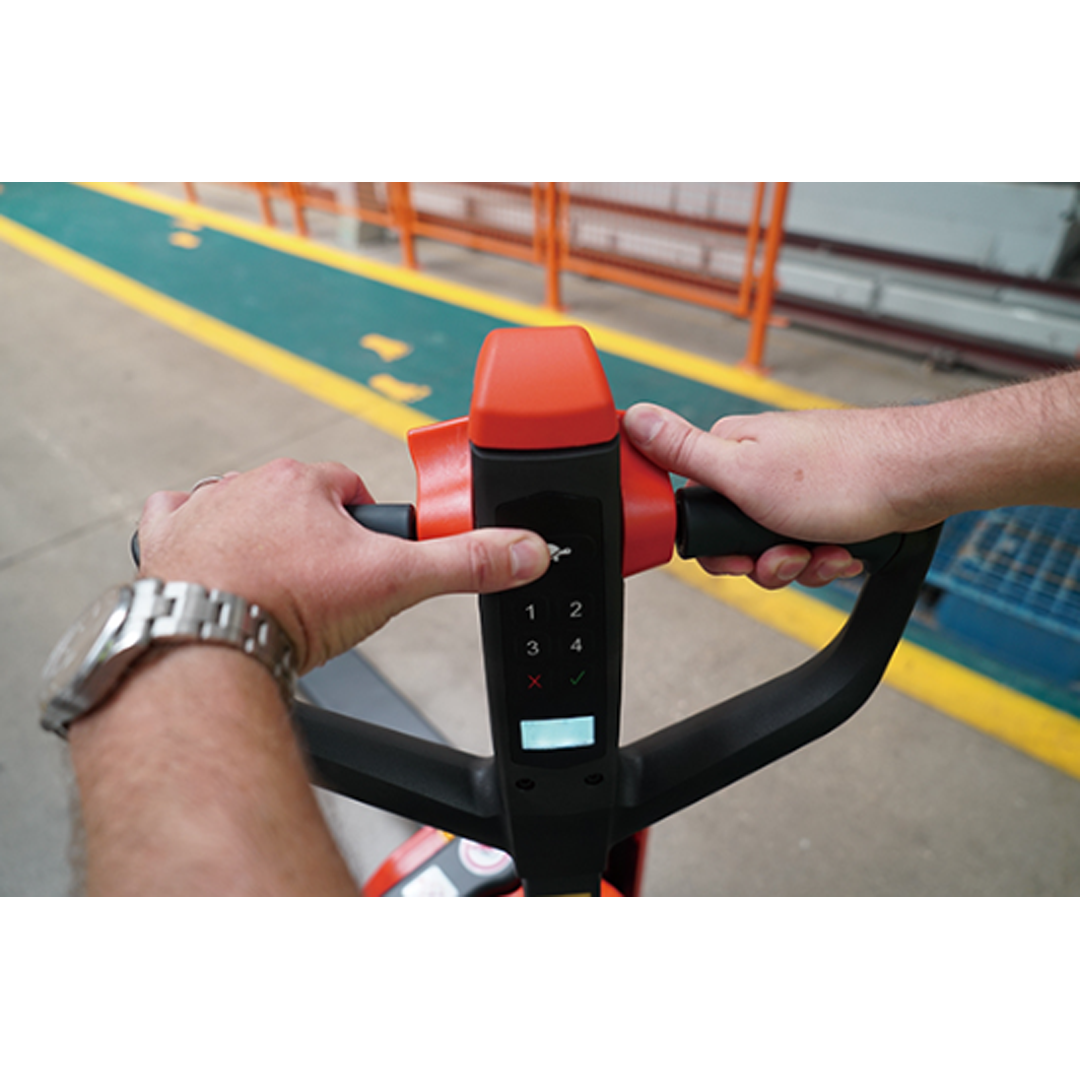

The Maximal PTE20N 2000kg 540mm x 1150mm Electric Pallet Truck tiller of the truck has ergonomic design with soft grips for comfort daily operation. All buttons are big and can be easily reached by operators even in case of working in glovesThe .
The Maximal PTE20N 2000kg 540mm x 1150mm Electric Pallet Truck has an Integrated PIN code panel with LCD display for smart control and operation.
The Maximal PTE20N 2000kg 540mm x 1150mm Electric Pallet Truck has speed reduction at different angles as well as function of active tiller in its up-right position.
The Maximal PTE20N 2000kg 540mm x 1150mm Electric Pallet Truck function of driving with tiller in the vertical position helps with work in confined areas, especially in elevators and lorries without sacrificing of safety.

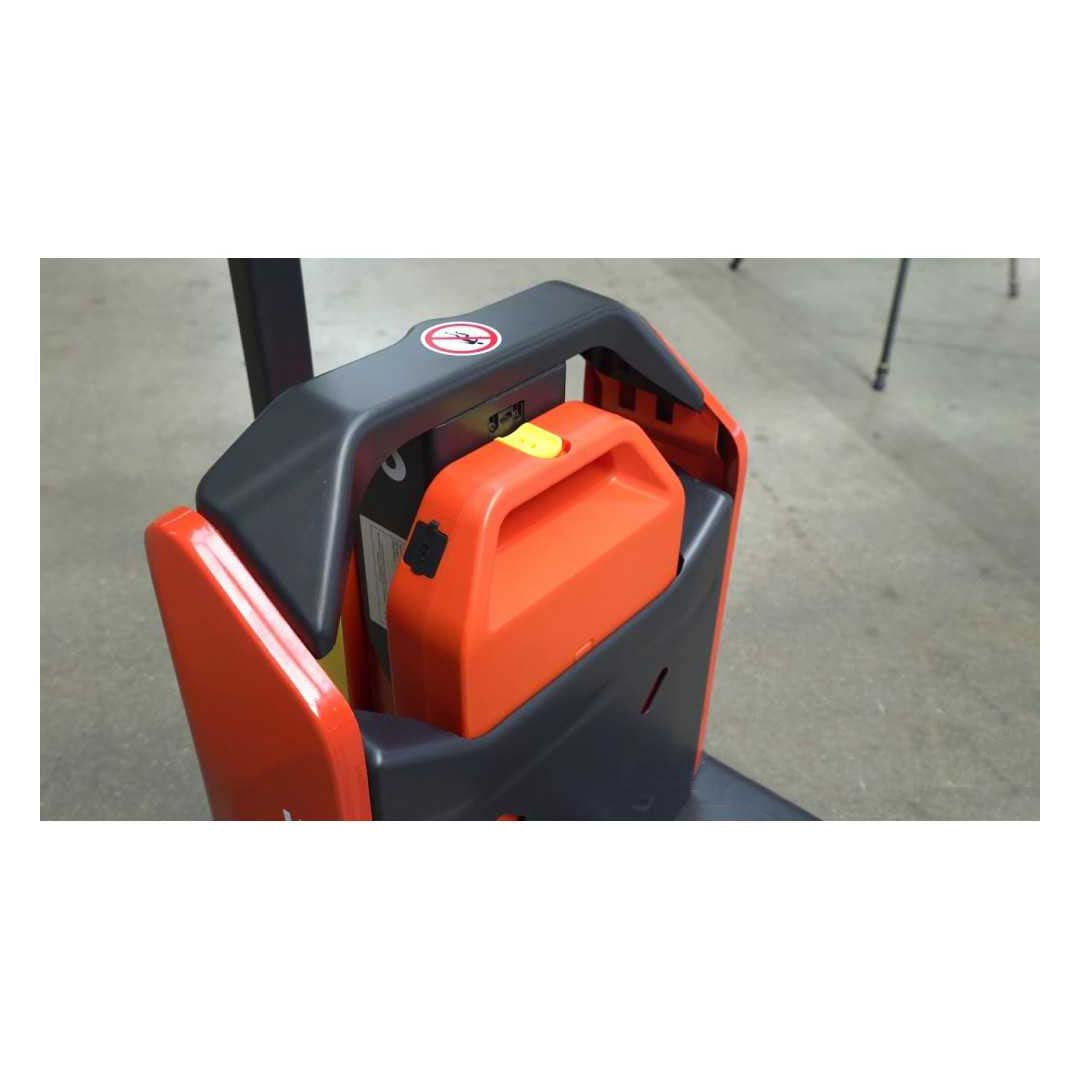

The Maximal PTE20N 2000kg 540mm x 1150mm Electric Pallet Truck is fitted with a maintenance free 48V / 20Ah Smart Lithium Battery and external 48V / 9A Charger.
The integrated BMS (Battery Management System) controls all important parameters and performance of the lithium battery on the Maximal PTE20N 2000kg 540mm x 1150mm Electric Pallet Truck.

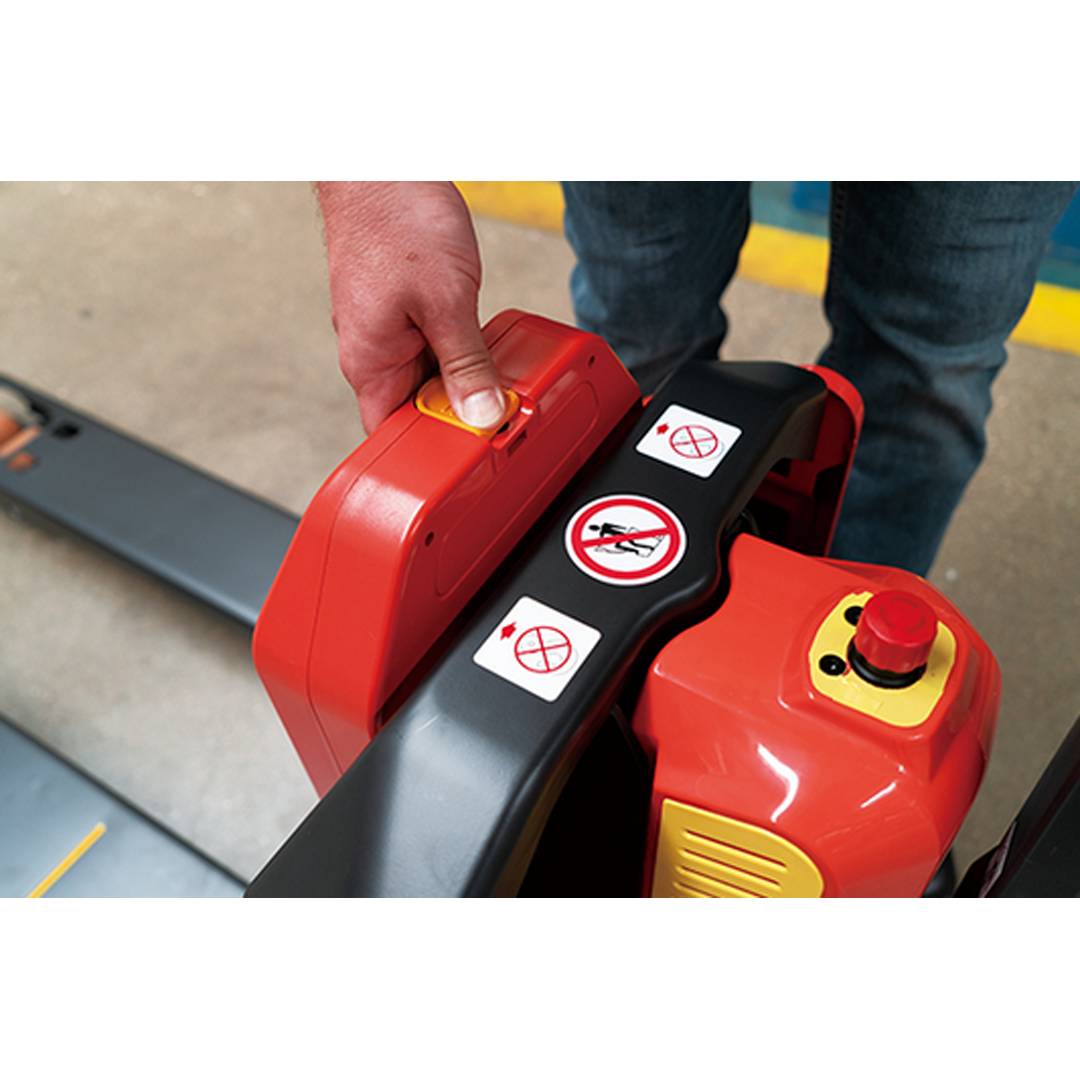

The Maximal PTE20N 2000kg 540mm x 1150mm Electric Pallet Truck lithium battery has a socket on the battery case for easy battery charging without the necessity to take the battery out the truck.
| Product Code |
PTE20N-540x1150 |
|---|---|
| Manufacturer | Maximal |
| Model | PTE20N |
| Lifting Capacity |
2000kg |
| Power |
Electric |
| Fork Dimensions |
540mm x 1150mm |
|

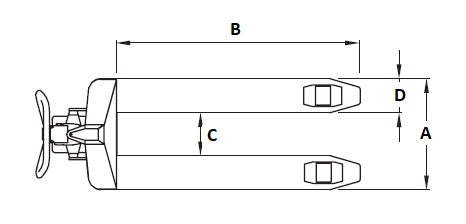

Overall Width Across the Forks (A) |
540mm |
|
Fork Length (B) |
1150mm |
|
Gap Between Forks (C) |
220mm |
|
Each Fork Width (D) |
160mm |
| Drive and Stabiliser Wheels |
Polyurethane |
| Load Roller Wheels |
Polyurethane Tandem |
| Lifting Height |
80mm to 195mm |
| Overall Length (including forks) |
1530mm |
| Battery |
48V / 20Ah |
| Charger |
External 230V (plugs into a standard wall socket) |
| Download PDF |
Maxiaml PTE20N Brochure |
