Description

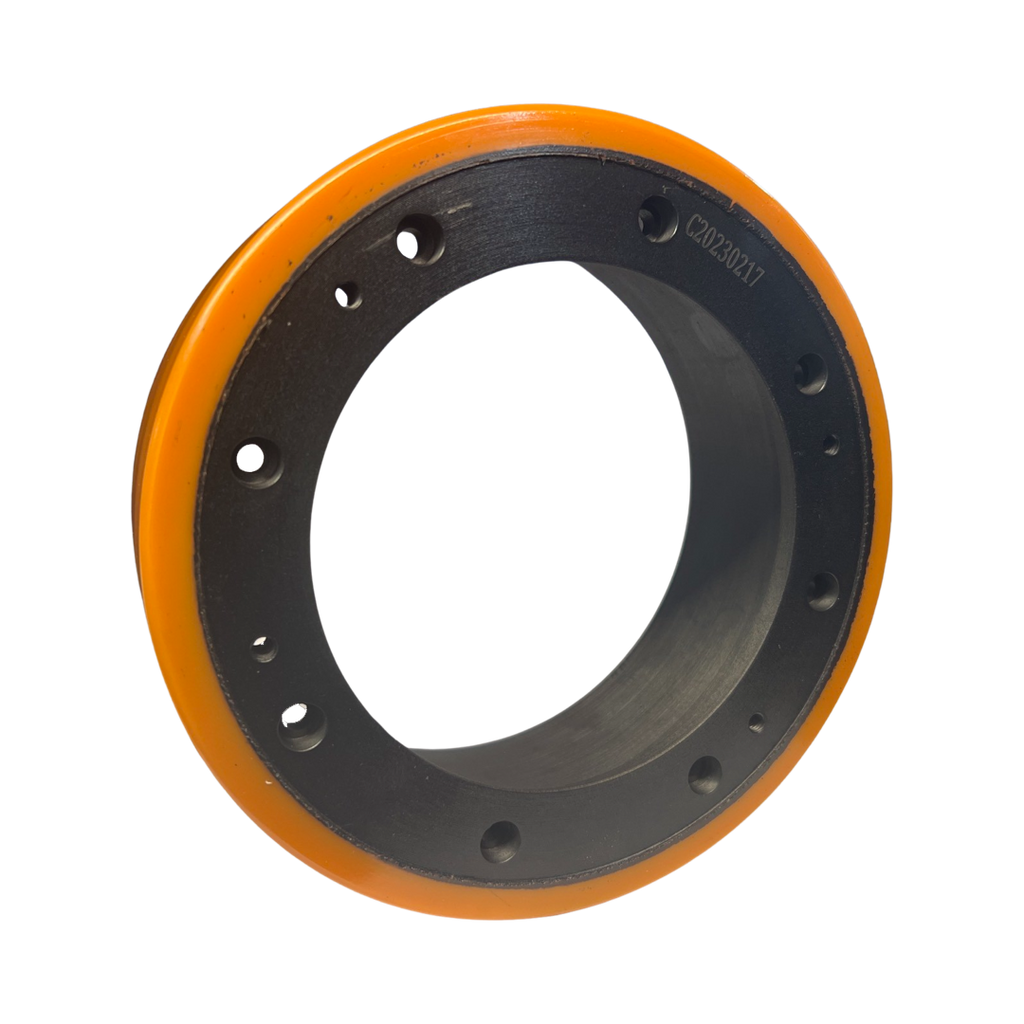

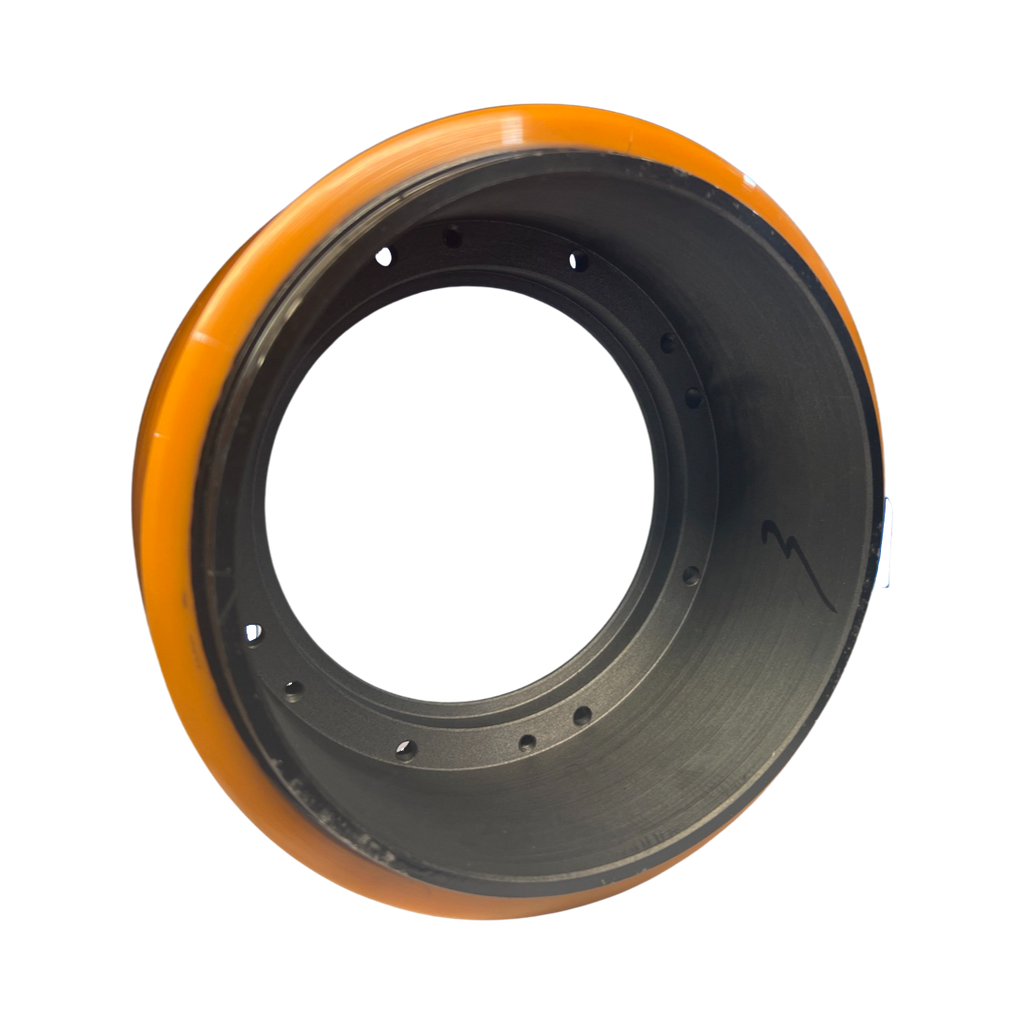

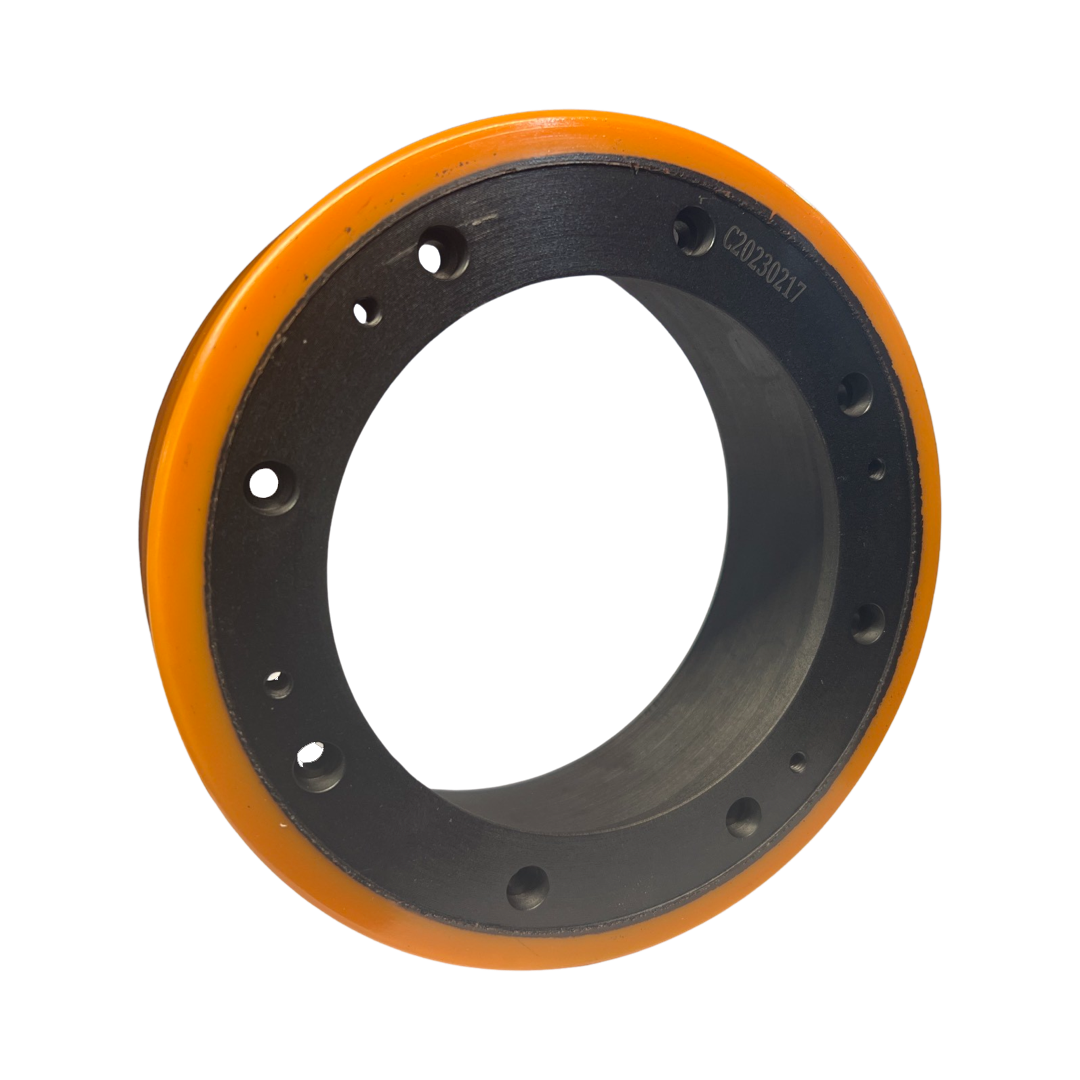

Noblelift PTE20N Drive Wheel 210mm x 75mm 508098520003
The Noblelift PTE20N Drive Wheel 210mm x 75mm 508098520003 has a high grade non-marking polyurethane tread.
| Part Number | 508098520003 |
|---|---|
| Manufacturer | Noblelift |
| Model | PTE20N |
| Wheel Type |
Drive Wheel |
| Tread Material |
Polyurethane |
| Wheel Diameter |
210mm |
| Tread Width |
75mm |
| Shaft Diameter |
135mm |
| Hub Width | 83.5mm |
| Number of Bolt Holes |
8 |
| Bolt Hole Diameter | 7mm |
| Type of Bolt Hole |
Straight Countersunk |
| Pitch Circle Diameter | 163mm |
| Hub Material | Steel |
| Tread Hardness | 93 Shore A |
