Description

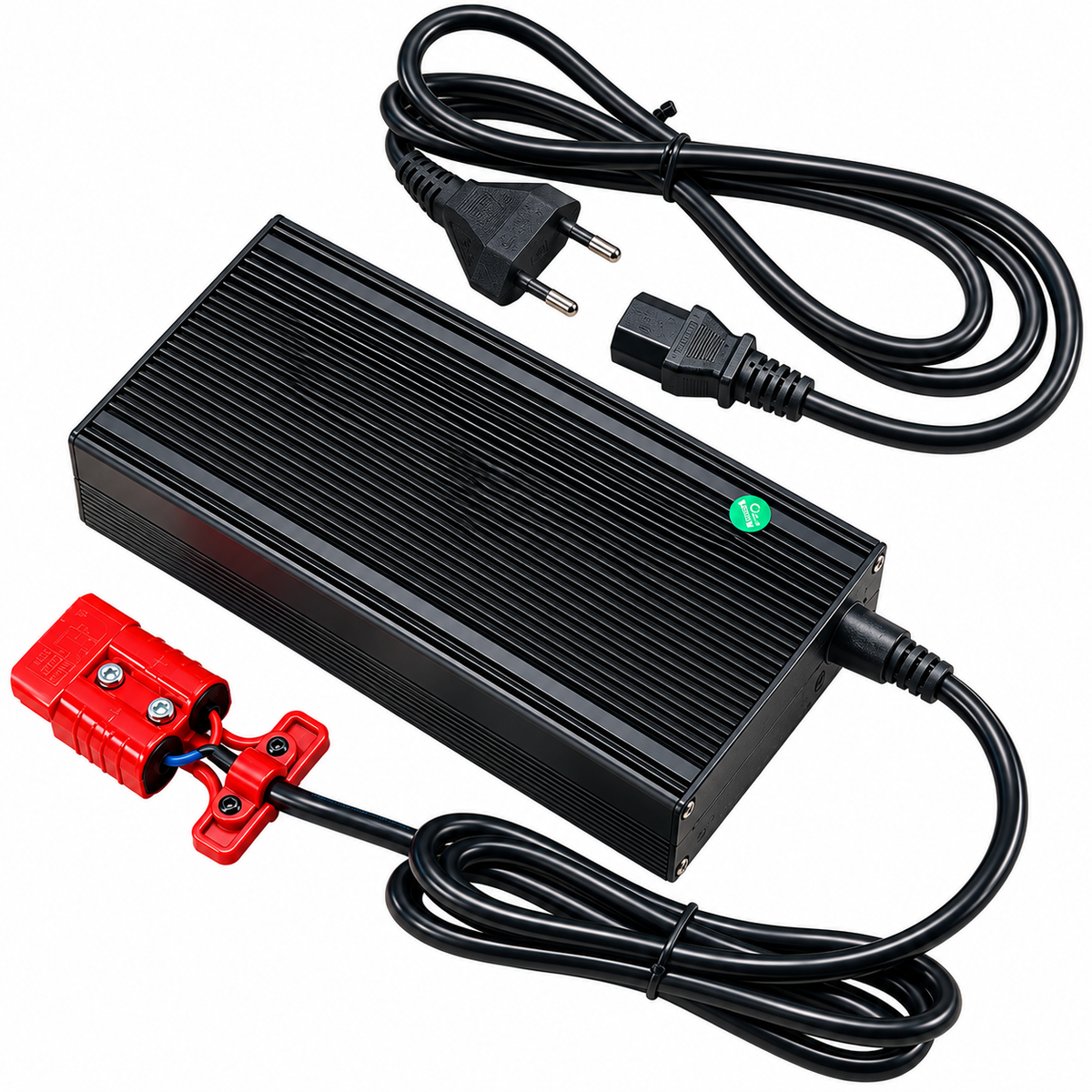

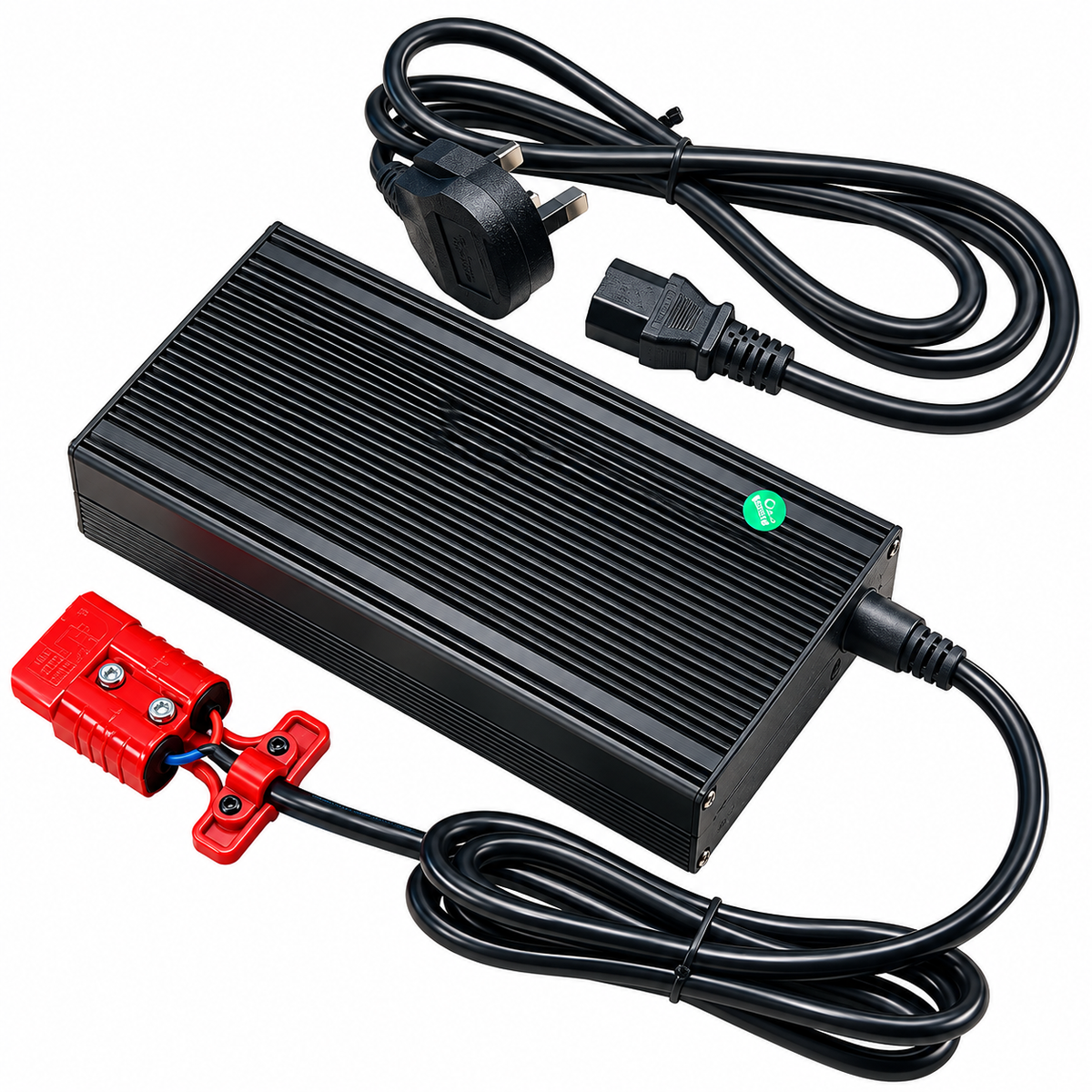

Replacement Staxx 48V 5A lithium-ion battery charger, available with either a UK or European mains plug. Suitable for selected Staxx, Loadsurfer, Midland and Pramac Lifter electric pallet trucks and powered pallet handling equipment.
Designed for compatible 48V lithium-ion battery systems, this charger provides a reliable charging solution for everyday warehouse and material handling operations. The UK version, part number 10301195, features a UK 3-pin plug, while the European version, part number 10301194, is supplied with a EURO mains plug.
Please select the required plug type before ordering. Both versions are intended for use with compatible 48V 5A charging systems; the original charger specification and battery-side connector must be checked before replacement.
Available Plug Options
| Plug Type | Staxx Part Number | Mains Connection |
|---|---|---|
| UK Plug | 10301195 | UK 3-Pin |
| EURO Plug | 10301194 | European 2-Pin |
Compatible Models
| Manufacturer | Compatible Models |
|---|---|
| Loadsurfer | STA-EPT20H-WB, STA-PPT20H-WB |
| Midland | MID-EPT15A, MID-EPT15B, MID-EPT18A, MID-EPT20A, MID-EPT20B, MID-PPT18A, MID-PPT18B |
| Pramac Lifter | EY15L, EY20L |
| Staxx | EPT15, EPT18H, EPT20H, PPT18H |
Important – Please Check Compatibility
Charging connectors and battery configurations can vary between trucks, even where the model number is the same. Please check your original charger's output rating, part number and charging connector before ordering.
If you are unsure, please provide your truck's make, model and serial number, together with a photograph of the original charger label and connector, so we can help confirm compatibility.
Part Number References
| Reference | Part Number / Model |
|---|---|
| Staxx EURO Plug | 10301194 |
| Staxx UK Plug | 10301195 |
| Replacement Reference | 10301206 (UK version) |
| Charger Model (UK) | SPC-290WW-543050 |

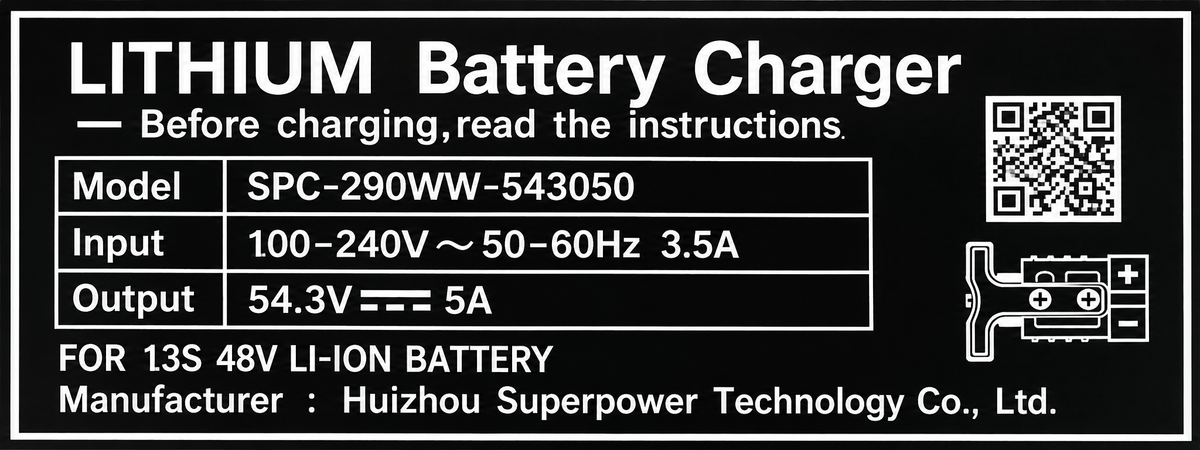

Technical Specifications
| Brand | Staxx |
| Product Type | Lithium-Ion Battery Charger |
| Nominal Battery Voltage | 48V DC |
| Charging Current | 5A |
| Battery Chemistry | Lithium-Ion |
| UK Charger Model | SPC-290WW-543050 |
| UK Charger Output | 54.3V DC / 5A |
| UK Charger Battery Configuration | 13S Lithium-Ion |
| UK Charger Input Voltage | 100–240V AC |
| UK Charger Input Frequency | 50–60Hz |
| UK Charger Input Current | 3.5A |
| Available Mains Plugs | UK 3-Pin / EURO 2-Pin |
| EURO Charger Specifications | Confirm against supplied unit label |
Compatibility Notice: These chargers must only be used with compatible lithium-ion battery systems. Confirm the charger's output voltage, charging connector, polarity and battery charging requirements before use. The EURO version's detailed electrical specifications must be verified against the supplied unit.
