Description

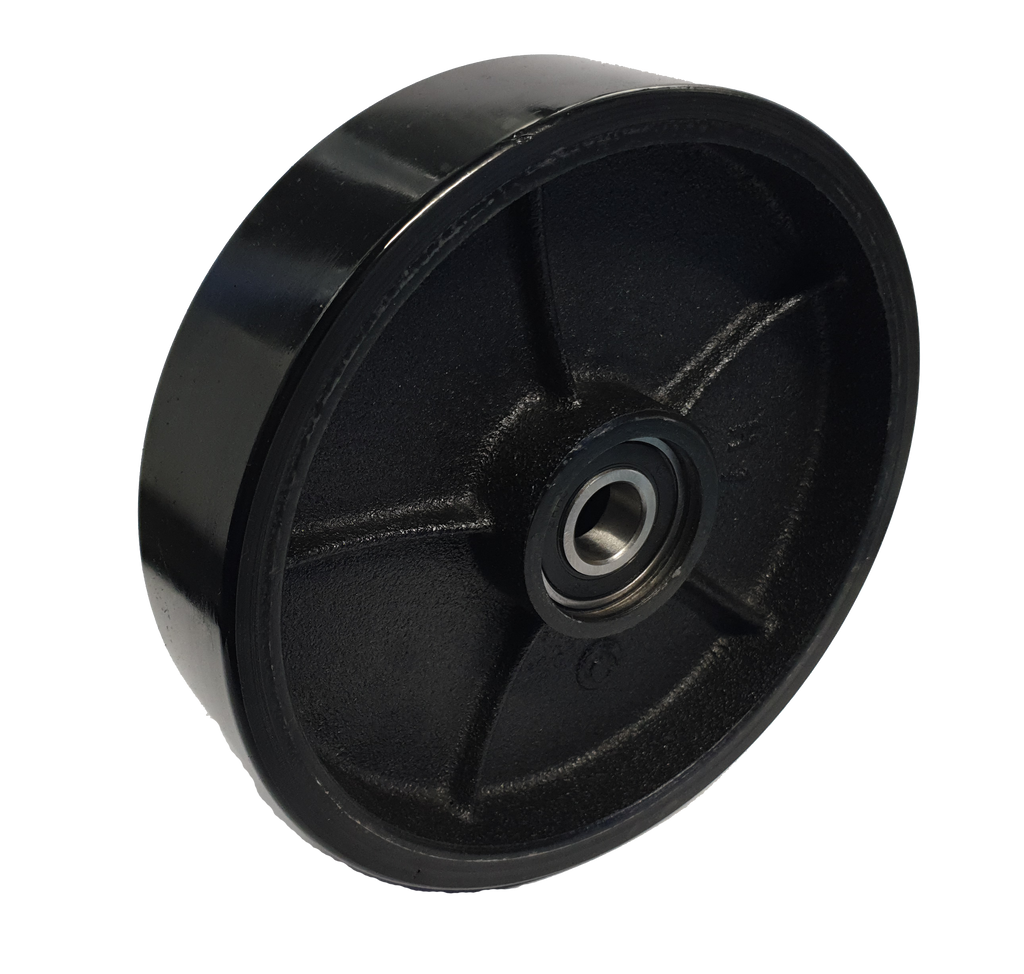

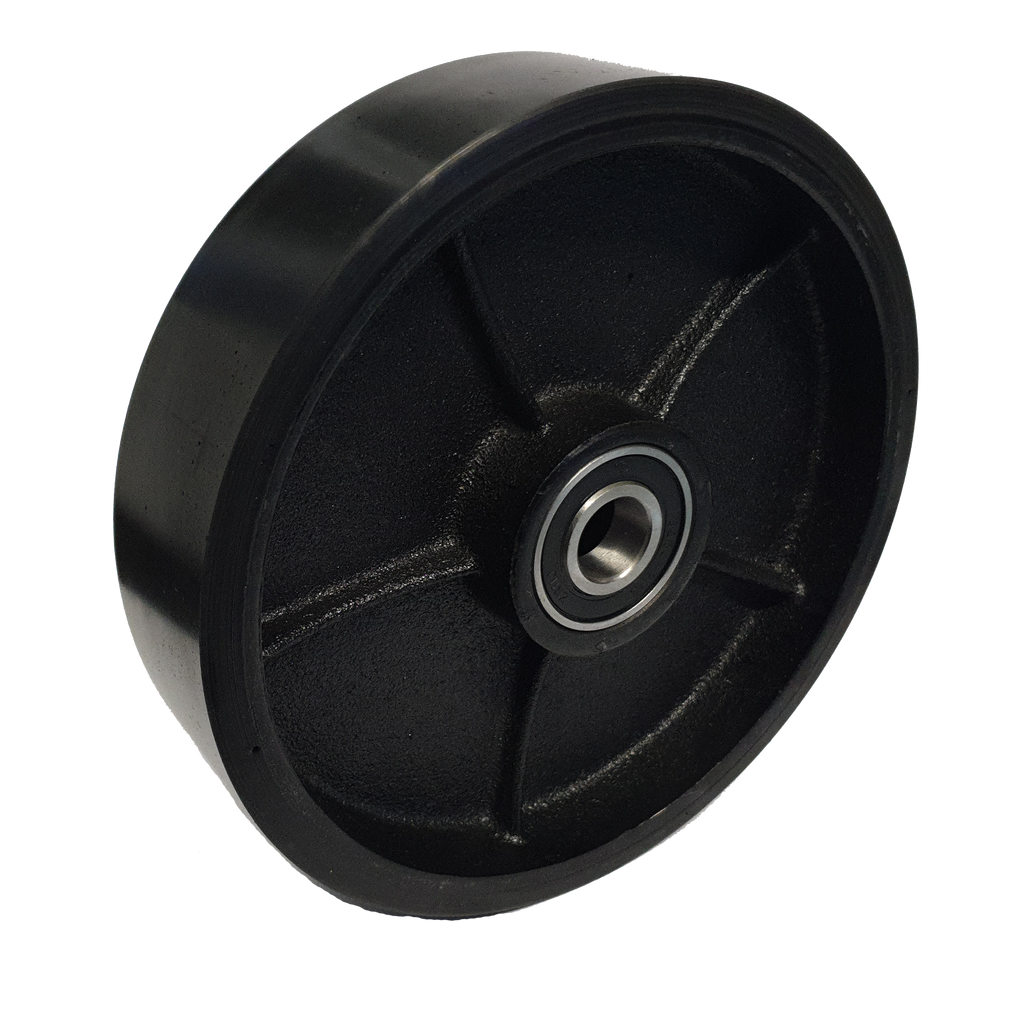

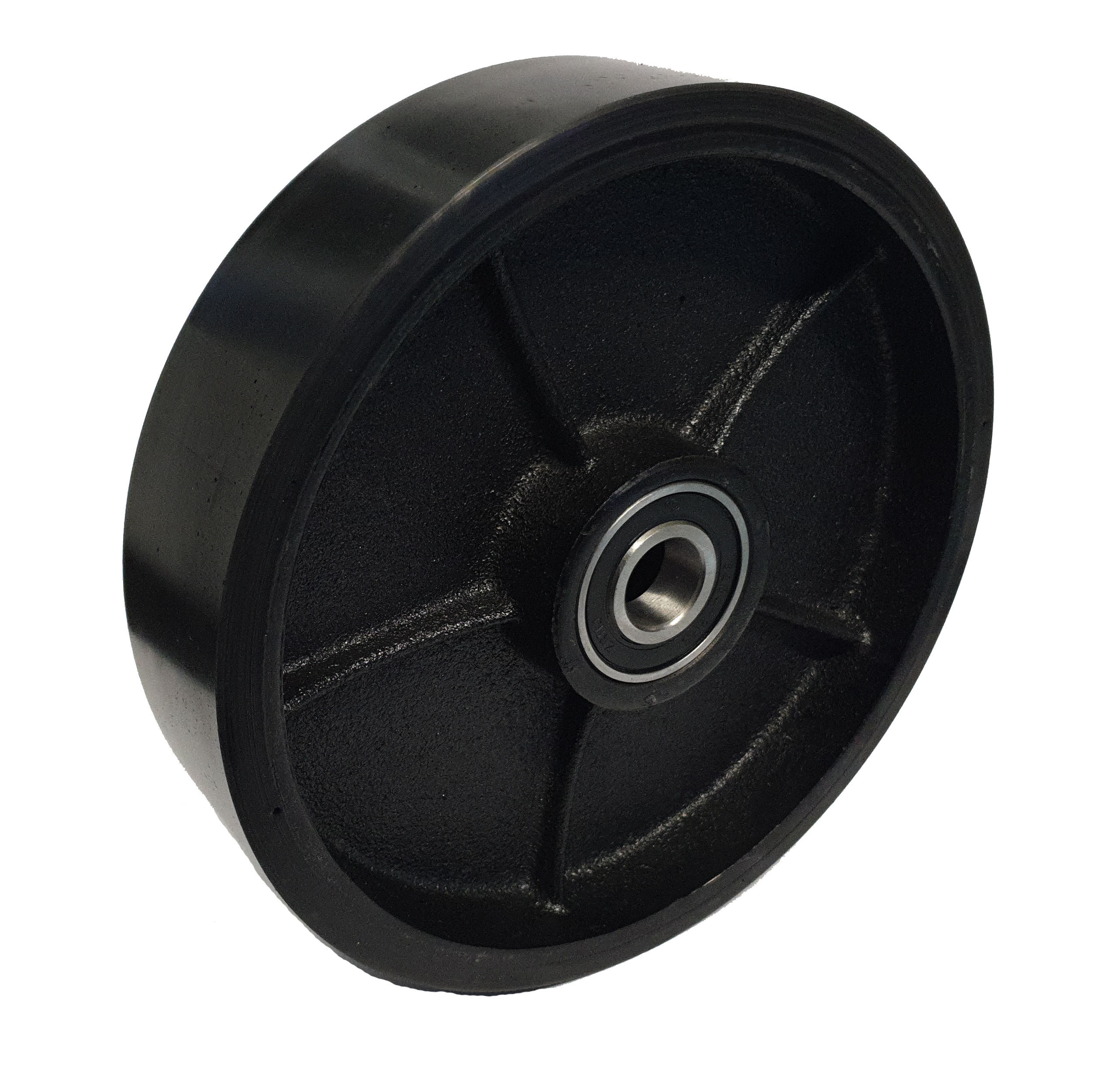

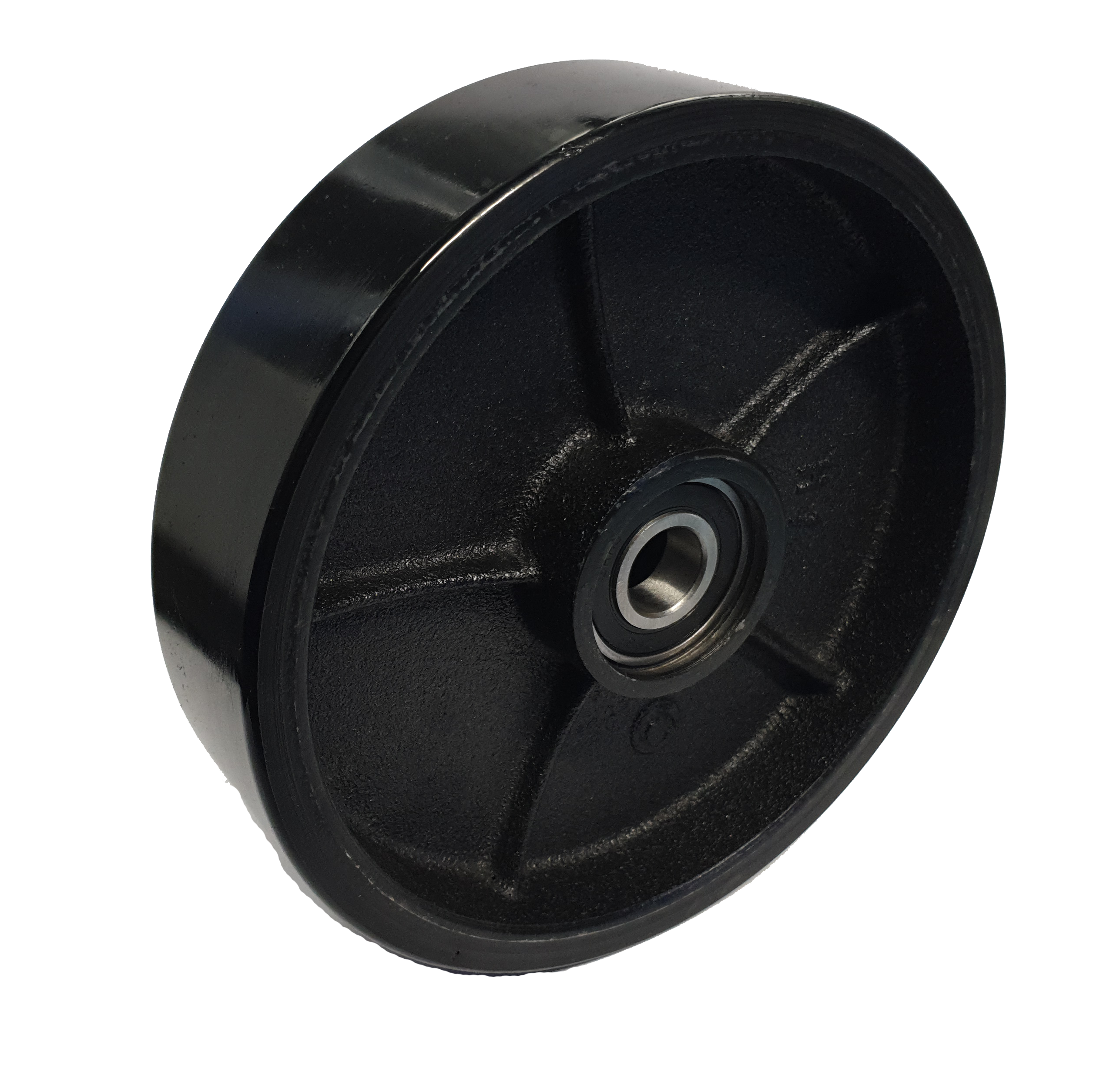

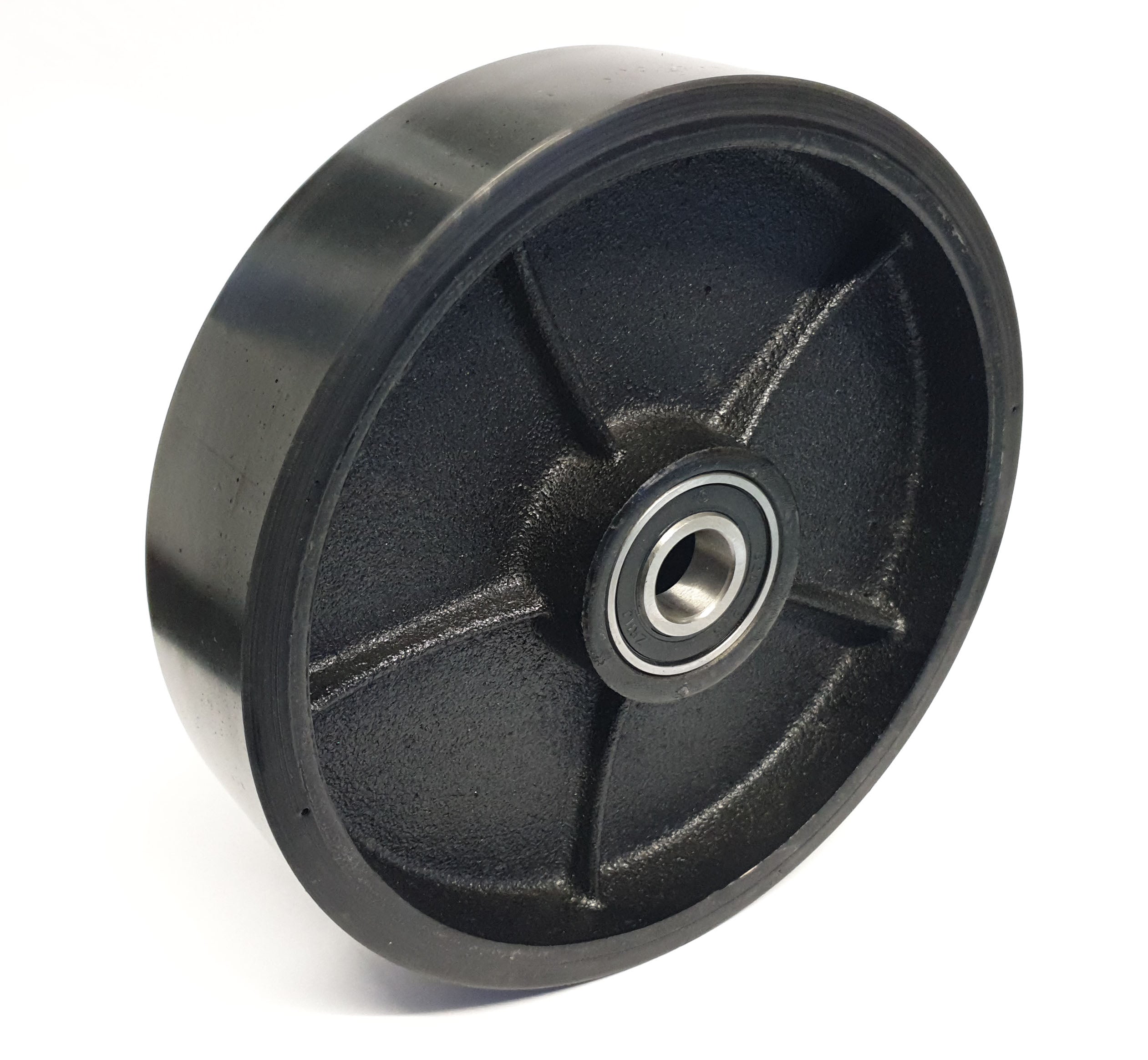

Part Numbers 128TA4374, 128TA4432 and 144TA6451 replaced by Part Number 12431481 Polyurethane Steer Wheel 180mm x 50mm x 20mm to fit the Total Lifter and Total Source hand pallet trucks.
| Part Numbers |
12431481 128TA4374 128TA4432 144TA6451 |
|---|---|
| Manufacturers |
Eoslift Total Lifter Total Source |
| Models |
AC20 AC25 AC-LOW-51 CBGIII HPT-A M25J TRSM0001 TRSM0002 |
| Product Description |
Steer Wheel |
| Tread Material |
Polyurethane |
| Wheel Diameter |
180mm |
| Tread Width |
50mm |
| Hub Width |
50mm |
| Mounting Width |
43mm |
| Bore Hole Diameter |
20mm |
| Bearings |
6204-2RS |
| Load Capacity |
660kg |
| Tread Hardness |
93 Shore A |
| Hub Material |
Cast Iron |
| Tread Surface |
Smooth |
| Unit Weight |
1.6kg |
