Description

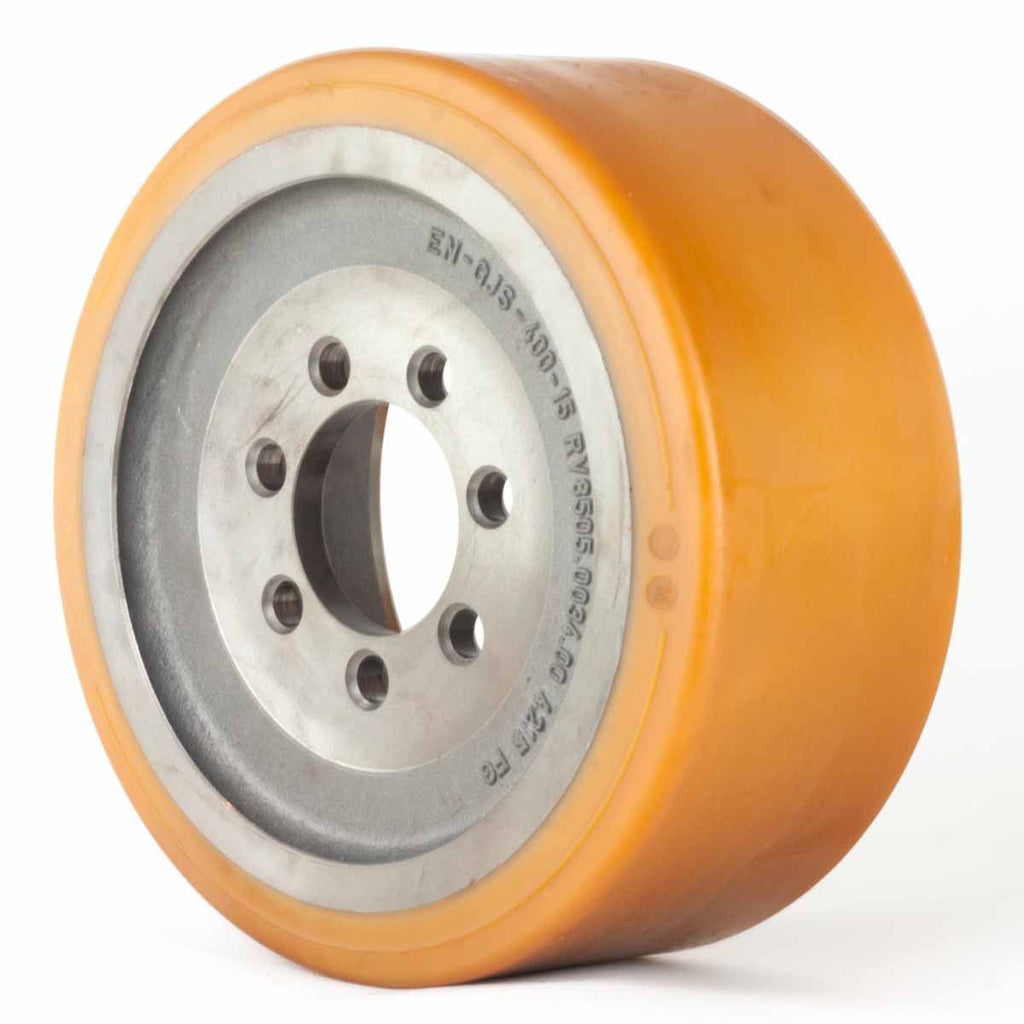

Still FM-X25 Drive Wheel 360mm x 140mm 8436458
The Still FM-X25 Drive Wheel 360mm x 140mm 8436458 is manufactured in Germany and has a Vulkollan© tread directly bonded to a cast iron centre.
Still FM-X25 Drive Wheel 360mm x 140mm 8436458 tread is suitable for high loads and high speeds, is non-marking and resistant to wear, tear and impact damage.
| Part Number | 8436458 |
|---|---|
| Manufacturer | Still |
| Model | FM-X25 |
| Wheel Type |
Drive Wheel |
| Tread Material |
Vulkollan |
| Wheel Diameter |
360mm |
| Tread Width |
140mm |
| Bore Hole Diameter |
90mm |
| Pitch Circle Diameter |
125mm |
| Stud Hole Diameter |
18.5mm |
| No of Studs |
7 |
| Bolt Hole Type |
Countersunk |
| Tread Hardness |
93 Shore A |
| Hub Material |
Cast Iron |
| Load Capacity |
4500kg |
