Description

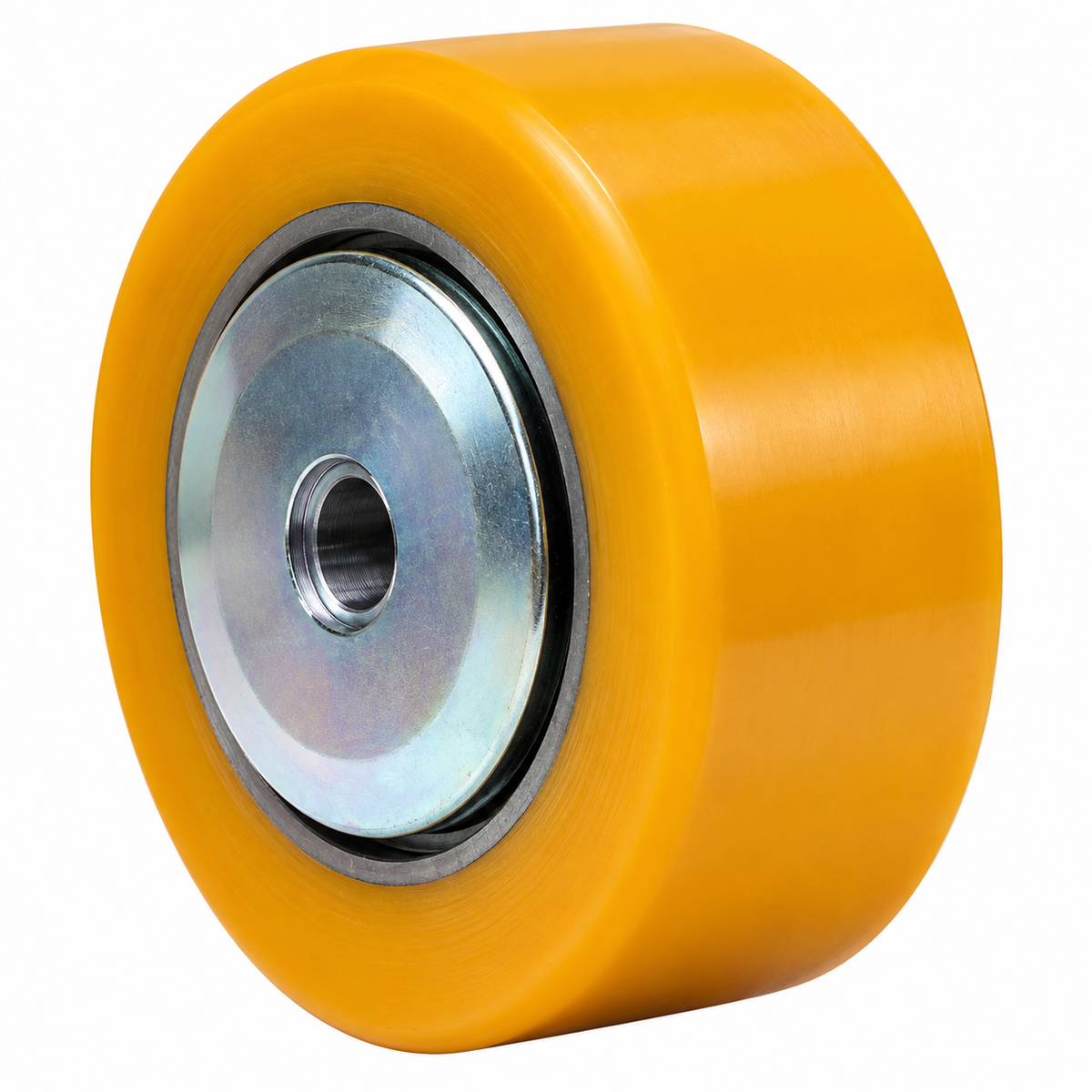

Replacement polyurethane stabiliser wheel for selected Toyota and Cesab electric pallet trucks, including the Toyota SPE140L. Suitable for Toyota part number 7611205, this wheel features a durable 93 Shore A polyurethane tread, smooth running surface and cast iron hub.
Designed to provide stable support during operation, the wheel has a 150mm diameter, 54mm tread width and 20mm bore, with a rated load capacity of 660kg.
Compatible Models
| Manufacturer | Model | Part Number |
|---|---|---|
| Toyota | SPE140L | 7611205 |
Replacement Part Number
Toyota: 7611205
Technical Specifications
| Wheel Diameter | 150mm |
| Tread Width | 54mm |
| Bore Diameter | 20mm |
| Hub Width | 60mm |
| Mounting Width | 64mm |
| Inner Diameter | 100mm |
| Hub Diameter | 52mm |
| Tread Material | Polyurethane |
| Tread Hardness | 93 Shore A |
| Tread Surface | Smooth |
| Hub Material | Cast Iron |
| Bearings | Included |
| Bearing Housing | 47 x 14mm |
| Load Capacity | 660kg |
| Unit Weight | 2.96kg |
Compatibility: Please confirm the original part number, wheel dimensions and truck serial number before ordering. Additional compatible Toyota and Cesab models may be added as applications are verified.
